Uniview Professional Camera Systems

Commercial-grade IP surveillance equipment used in warehouses, logistics facilities, offices, and multi-site properties.

Uniview Product Lineup

Commercial-grade IP surveillance used across warehouses, logistics facilities, offices, and multi-site properties. Pricing is quote-based and depends on layout, coverage needs, and installation requirements.

System highlights

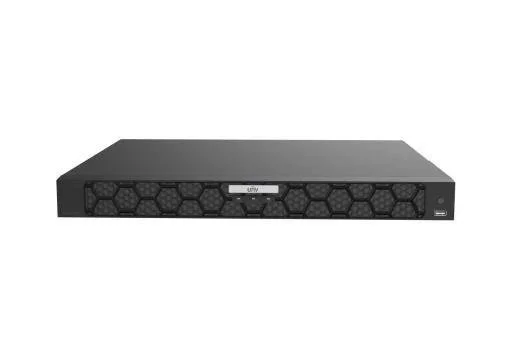

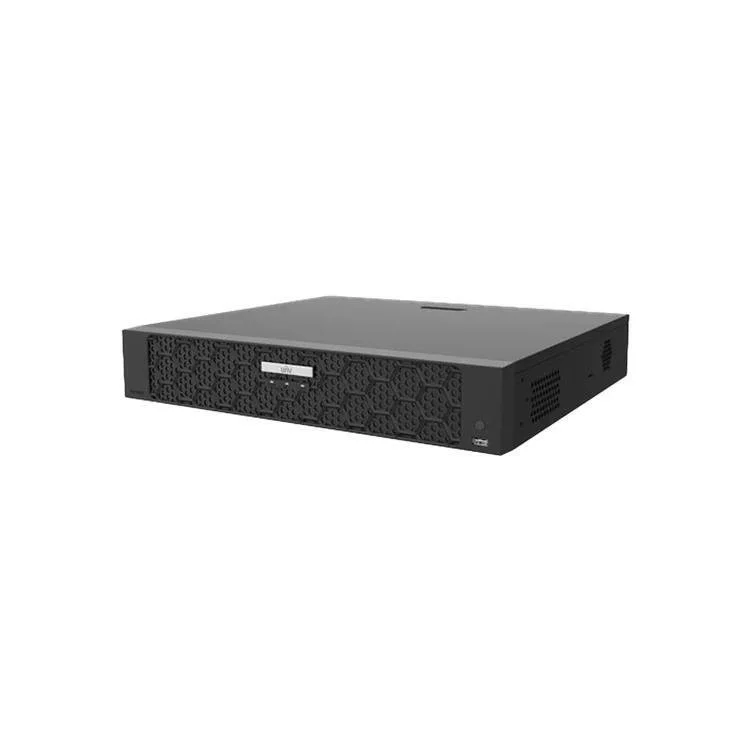

  • Works with Uniview PoE NVRs: plug cameras into the NVR for fast setup and reliable recording.
  • Local recording: footage stored on-site (no forced cloud subscriptions).
  • Remote viewing: free desktop + mobile access for playback, live view, and management.
  • ONVIF support: compatible with many existing ONVIF-capable systems.
Find products
Search by model/MSKU or filter by category.
Showing 0 products Wishlist: 0

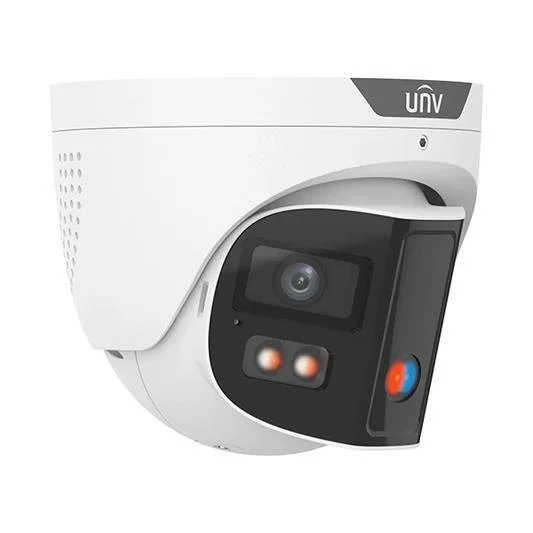

4K Wide Angle 180° FOV Tri-Guard 2.0 OmniView Fixed Turret (Active Deterrence + 24/7 Color)

Model: IPC3K28SE-ADF28KMC-DL-I0   •   MSKU: 4301

  • 8MP (4K) wide-angle turret with 180° horizontal coverage (dual-lens splice)
  • ColorHunter for 24/7 full-color imaging + red/blue warning light deterrence
  • Deep-learning smart intrusion prevention (targets humans / vehicles / non-motor vehicles)
  • Built-in speaker + dual mics, 130dB true WDR, IK10/IP67, microSD up to 512GB

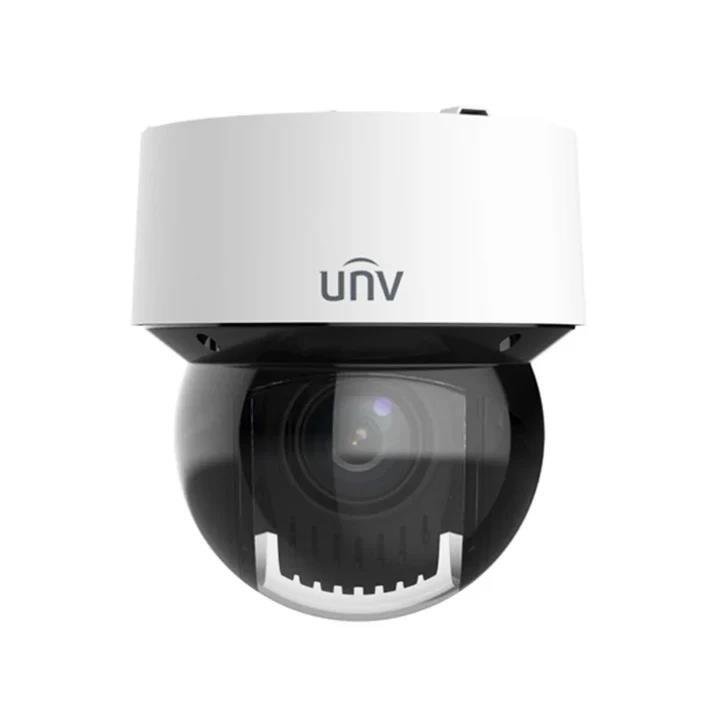

4MP 10X LightHunter Weatherproof PTZ Dome Camera

4MP 10× LightHunter Weatherproof PTZ Dome

Model: IPC6434LR-X10-VG1   •   MSKU: 4302

  • 4MP resolution (2688 × 1520 @ 30fps) with 1/2.9" CMOS sensor
  • 10× optical zoom with motorized 5.5–55mm lens
  • LightHunter technology for superior low-light performance
  • Smart IR up to 100m (328 ft) for long-range night coverage
  • Ultra 265 / H.265 / H.264 compression, dual streams
  • PoE+ (802.3at) or 12V DC, IP66 + IK10 vandal resistance

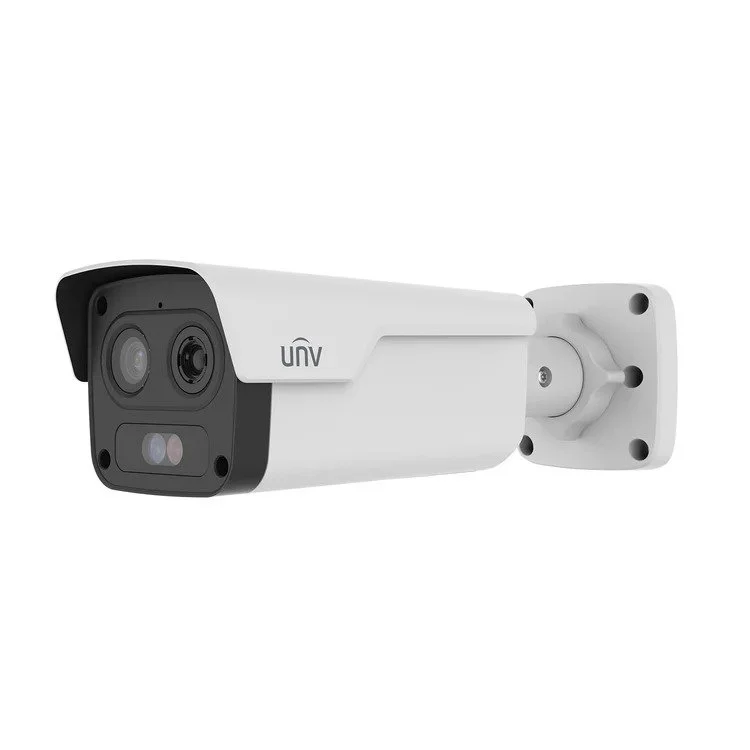

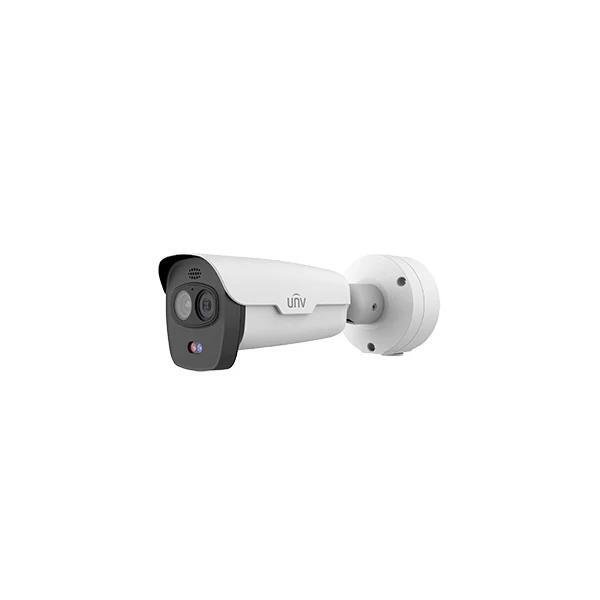

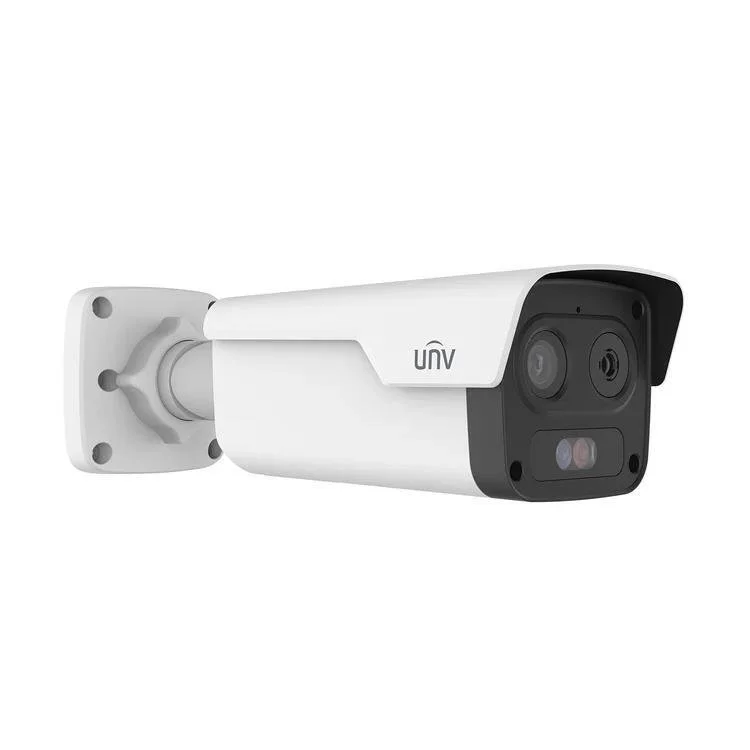

Thermal + Optical Dual-Spectrum Bullet Camera

Model: TIC2A32SA-F10-4F8AC-I1   •   MSKU: 4303

  • Dual-spectrum imaging combining thermal and optical video in one camera
  • Thermal-based fire, smoke, and abnormal temperature detection
  • Picture-in-picture mode for simultaneous thermal + optical awareness
  • Optical resolution up to 2688 × 1520 @ 30fps with thermal resolution up to 960p

OwlView 4K Wise-ISP Bullet (24/7 Color)

Model: IPC2318SR-ADF28KM-WP   •   MSKU: 4304

  • Ultra-low-light performance using large 1/1.8" sensor with F1.0 aperture
  • Wise-ISP image processing for cleaner detail and reduced noise
  • 8MP 4K resolution (3840×2160 @ 20fps) for sharp identification
  • 24/7 full-color imaging with integrated white-light illuminator (up to 30m)
  • 120dB true WDR for high-contrast lighting environments
  • IP67 weather-rated housing for indoor or outdoor installations

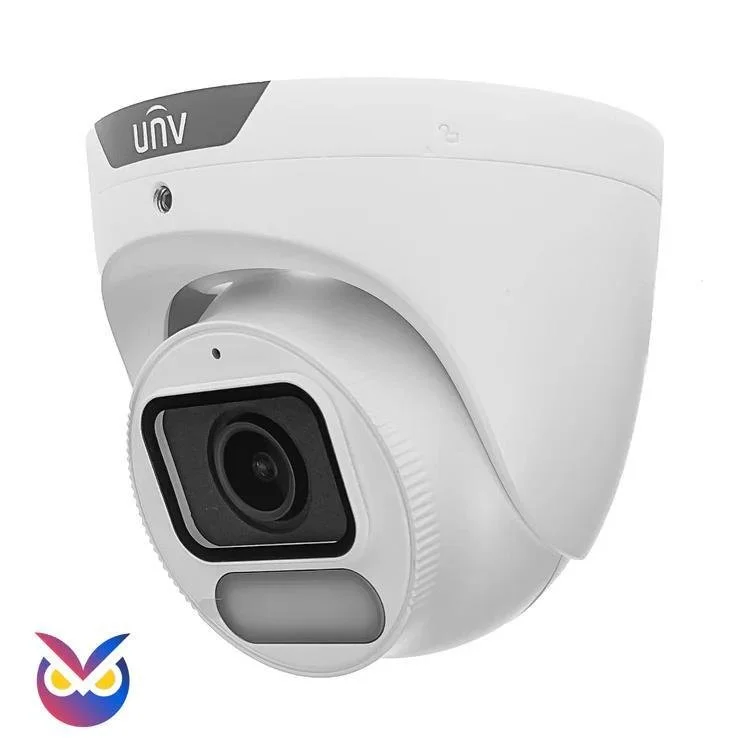

OwlView 4K Wise-ISP Turret

Model: IPC3628SR-ADF28KM-WP   •   MSKU: 4305

  • 8MP (4K) resolution for clear identification and evidence capture
  • Ultra-low-light performance using large 1/1.8" sensor with F1.0 lens
  • Wise-ISP processing for cleaner images with reduced noise and smearing
  • 24/7 full-color video without IR or white-light illumination
  • 120dB true WDR and IP67-rated housing for indoor or outdoor use

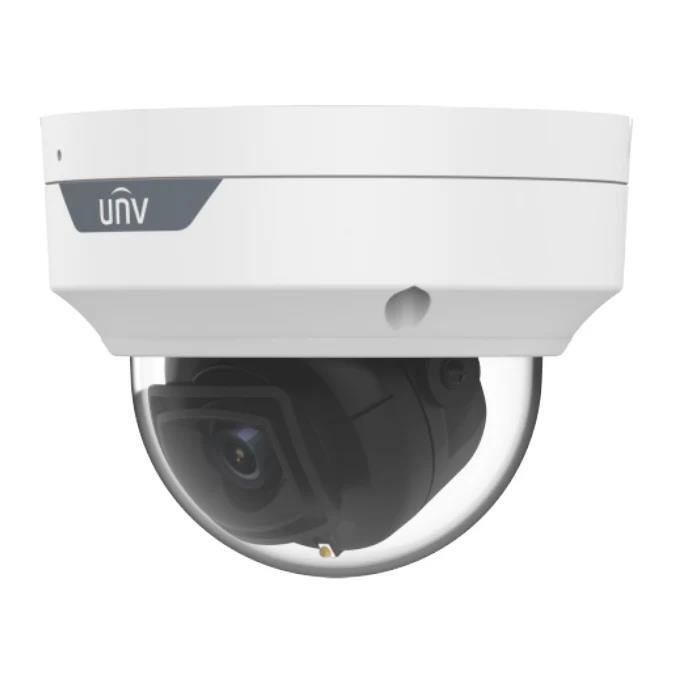

OwlView 4K Wise-ISP Vandal Dome (24/7 Full-Color)

Model: IPC3528SR-ADF28KM-WP   •   MSKU: 4306

  • 8MP (4K Ultra HD) imaging with large 1/1.8" CMOS sensor and F1.0 aperture
  • 24/7 full-color video using ColorHunter technology with Wise-ISP processing
  • AI-based intrusion prevention with human and vehicle classification
  • Built-in microphone, microSD support up to 512GB, IK10 + IP67-rated housing

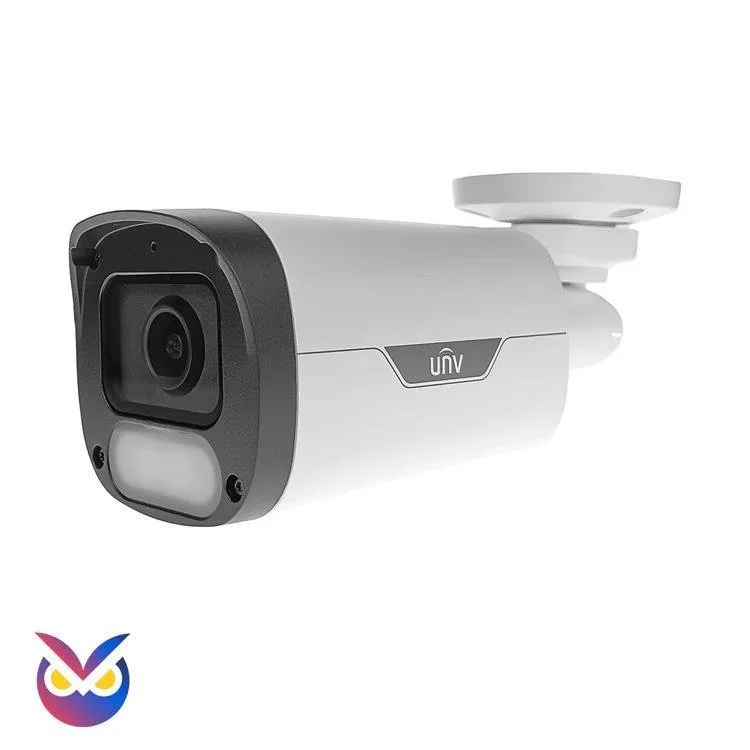

OwlView 4MP Wise-ISP Bullet (24/7 Color)

Model: IPC2314SR-ADF28KM-WP   •   MSKU: 4308

  • Ultra-low-light imaging with 1/1.8" CMOS sensor and F1.0 fixed aperture
  • Wise-ISP processing for reduced noise and clearer nighttime evidence
  • 4MP resolution (2688 × 1520 @ 25fps) for reliable identification
  • 24/7 full-color video with integrated white-light illuminator (up to 30m)
  • 120dB true WDR and IP67-rated housing for demanding outdoor environments

OwlView 4MP Wise-ISP Turret

Model: IPC3624SR-ADF28KM-WP   •   MSKU: 4309

  • Ultra-low-light imaging with large 1/1.8" sensor and F1.0 aperture
  • Wise-ISP processing for cleaner detail with reduced noise and smearing
  • 4MP resolution with true 24/7 full-color imaging
  • 120dB WDR and IP67-rated housing for reliable indoor/outdoor deployment

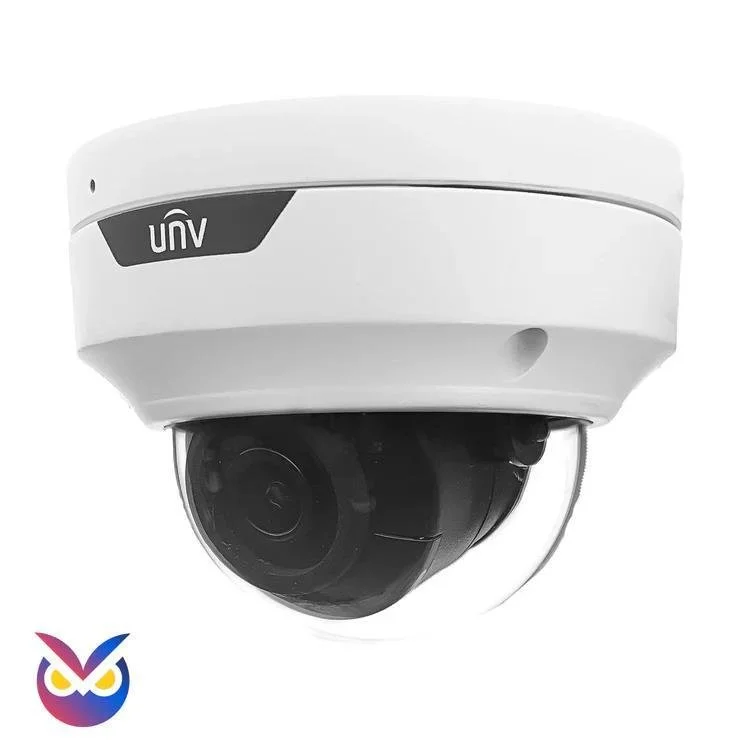

OwlView 4MP Wise-ISP Vandal Dome (24/7 Color)

Model: IPC3514SR-ADF28KM-WP   •   MSKU: 4310

  • Ultra-low-light imaging with large 1/1.8" sensor and F1.0 aperture
  • Wise-ISP processing for cleaner detail with reduced noise and smearing
  • 4MP resolution (2688×1520 @ 25fps) for sharp identification
  • IK10 vandal resistance, IP67 weatherproofing, and 120dB true WDR

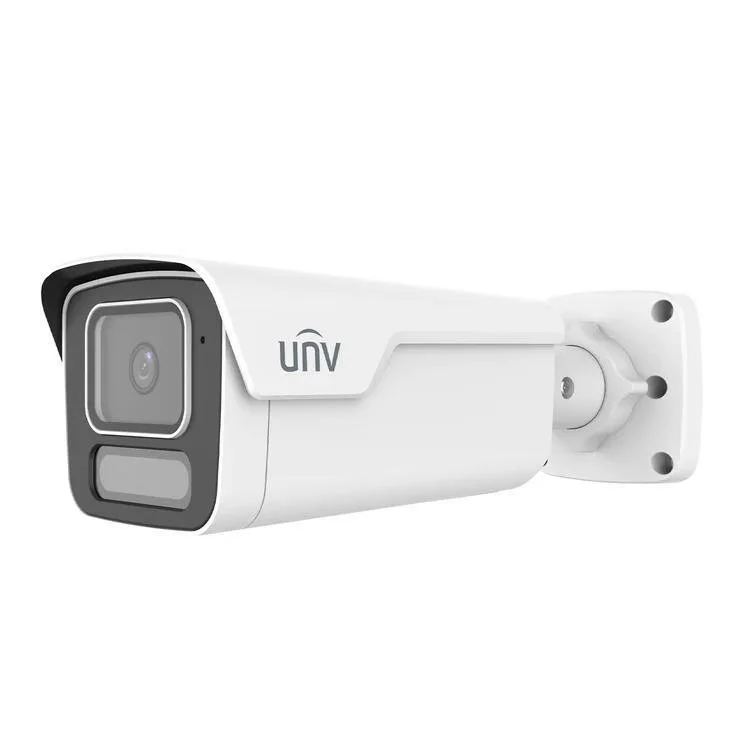

OwlView Plus 4MP Wise-ISP Full-Color Bullet

Model: IPC2B14SE-ADF28K-WP-I1   •   MSKU: 4311

  • 24/7 full-color video using a large 1/1.8" CMOS sensor and F1.0 lens
  • Wise-ISP image processing for cleaner detail with reduced noise
  • Advanced AI intrusion detection with human and vehicle classification
  • Built-in microphone, 130dB true WDR, corridor mode, and IP67 housing

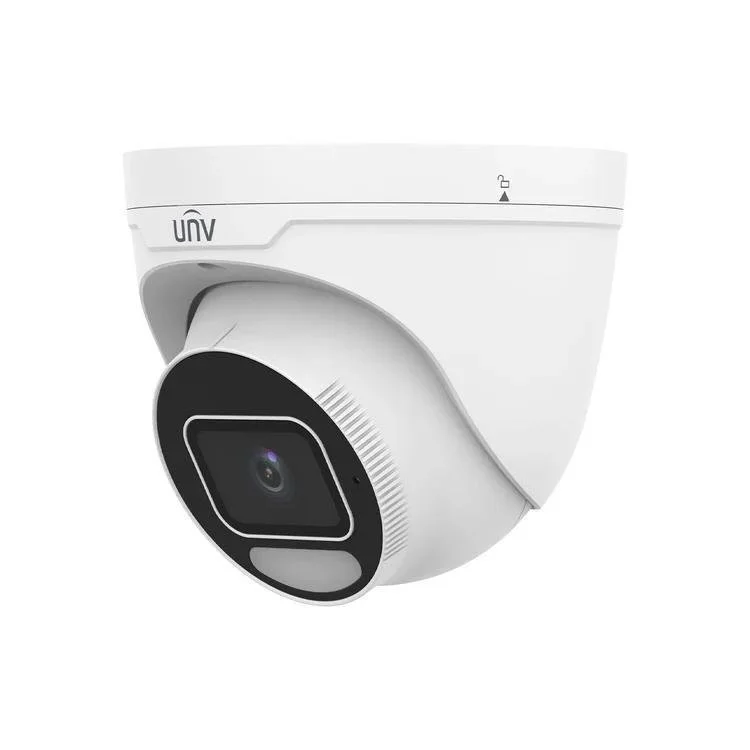

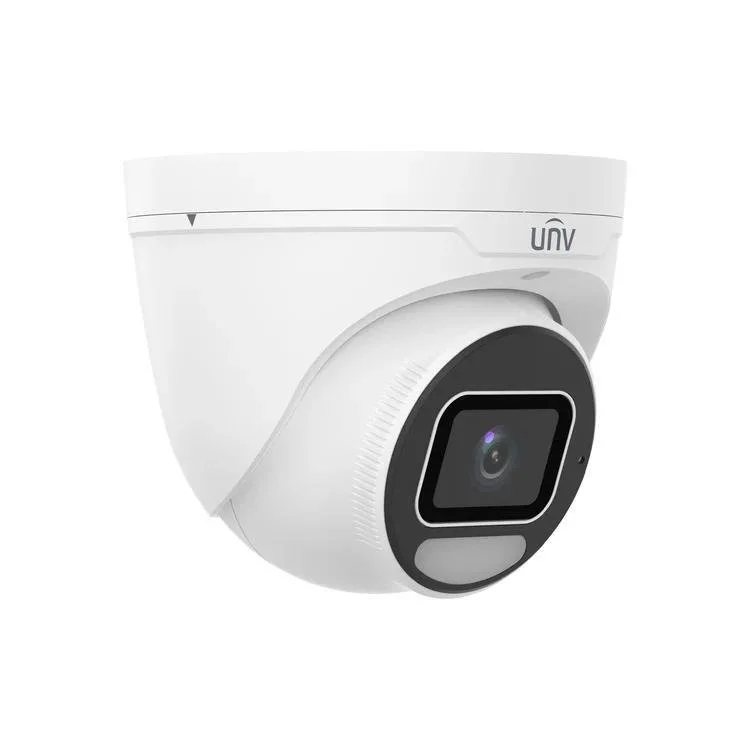

OwlView Plus 4MP Wise-ISP 24/7 Full Color Turret (Mic)

Model: IPC3634SE-ADF28K-WP-I1   •   MSKU: 4312

  • Excellent low-light clarity using a large 1/1.8" sensor with F1.0 lens
  • Warm white LEDs (up to 30m) for true 24/7 full-color video
  • ColorHunter + Wise-ISP processing for vivid color with reduced noise
  • 4MP (2688 × 1520) @ 30fps with AI intrusion detection and analytics
  • Built-in mic, 130dB true WDR, IK10 + IP67 housing, corridor mode, microSD up to 512GB

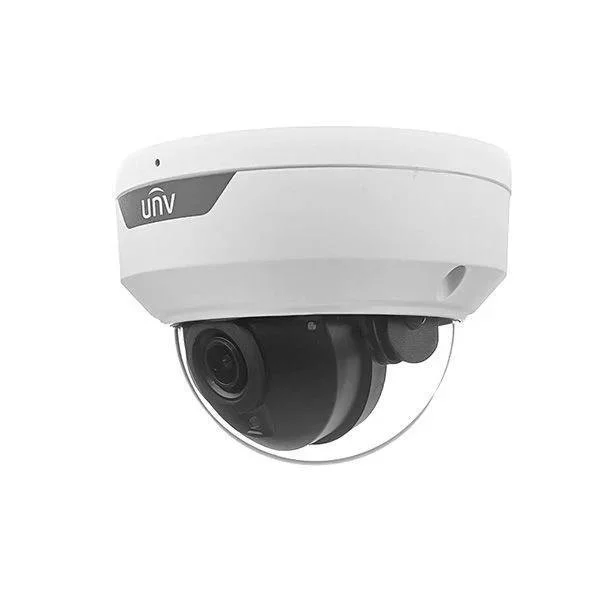

2MP NDAA Fixed Dome (Wi-Fi)

Model: IPC322LB-AF28WK-G   •   MSKU: 4313

  • 2MP (1080p) imaging for reliable everyday coverage
  • Built-in Wi-Fi for flexible installs where cable runs are difficult
  • Built-in mic plus Smart IR up to 30m (98 ft)
  • Rugged IK10 vandal resistance and IP67 weather protection
  • microSD support for edge recording (when needed)

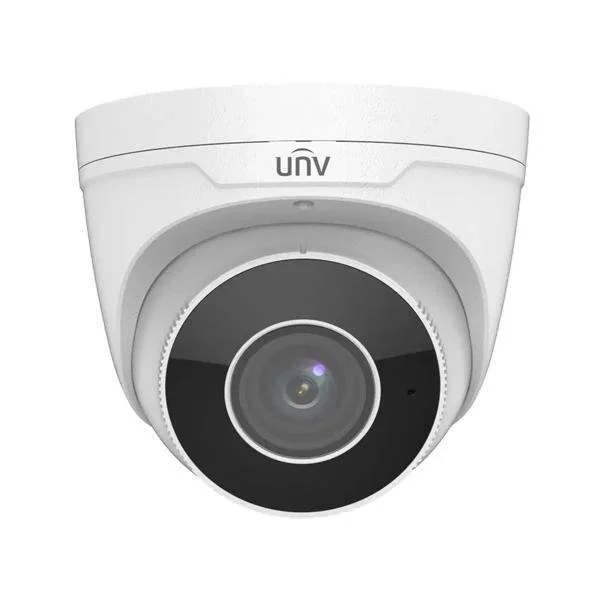

4MP NDAA IR Varifocal Eyeball (2.8–12mm)

Model: IPC3634SR4-ADZK-H   •   MSKU: 4314

  • 4MP imaging with multi-stream support up to 25/20fps
  • 120dB true WDR for backlit and high-contrast scenes
  • Motorized 2.8–12mm varifocal lens with 9:16 corridor mode
  • Built-in mic, Smart IR up to 40m (131 ft), PoE support
  • microSD storage (up to 256GB), IP67 weather rating, 3-axis adjust

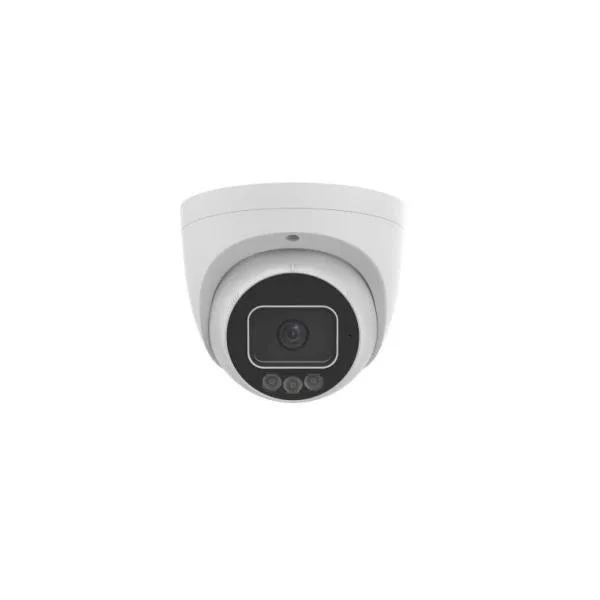

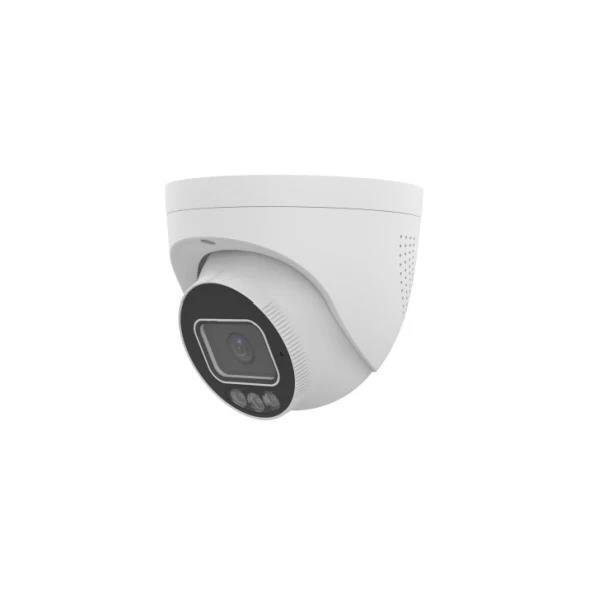

Tri-Guard 2.0 5MP Active Deterrence Turret

Model: IPC3635SS-ADF28KMC-I1   •   MSKU: 4315

  • 5MP resolution with 130dB true WDR for challenging lighting
  • Active deterrence via red & blue strobes plus white warning light
  • Two-way audio with integrated microphone and speaker
  • Smart IR up to 30m (98 ft) with AI human & vehicle filtering

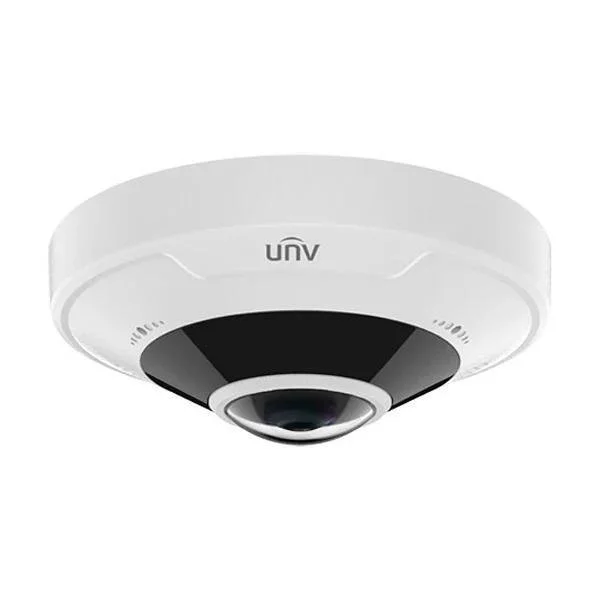

12MP 4K Panoramic IR Fisheye (360°)

Model: IPC86CEB-AF18KC-I0   •   MSKU: 4316

  • 12MP panoramic resolution (up to 4000 × 3000) with true 360° coverage
  • Embedded IR illumination with full 360° fill (up to 15 m / 49 ft)
  • Built-in microphone and speaker for two-way audio
  • Heatmap analytics support for people counting and traffic analysis
  • Supports Ultra265 / H.265 / H.264 compression
  • IK10 vandal resistance, IP67 weather rating, and microSD support up to 256GB

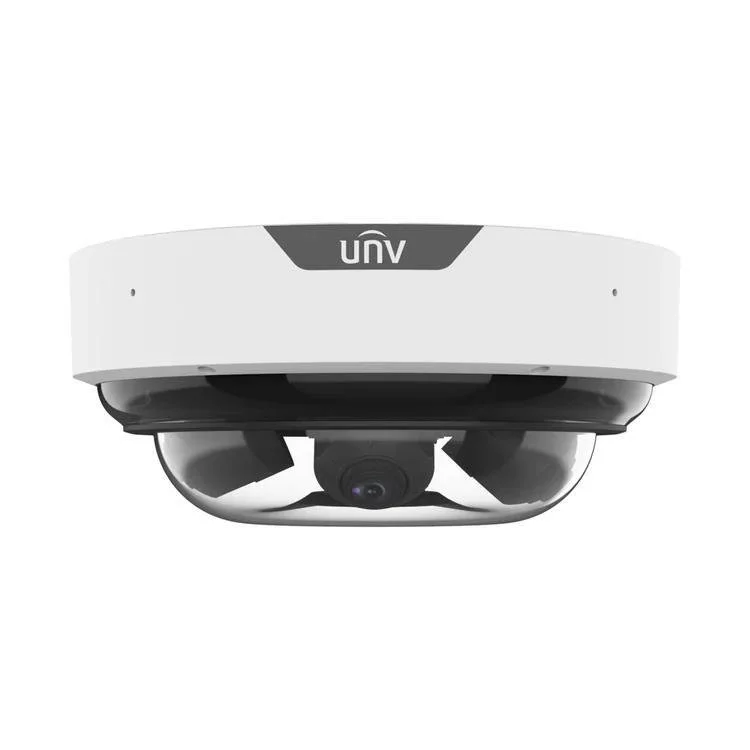

20MP Multi-Sensor Vandal Dome (4×5MP Zoom Lenses)

Model: IPC8645EA-ADZKM-I1   •   MSKU: 4317

  • Four adjustable motorized zoom lenses in one housing (single cable run)
  • One IP address with four channels (4-channel stream output)
  • Each channel outputs up to 5MP (2880 × 1620 @ 30fps)
  • Smart intrusion prevention + false-alarm filtering for accurate detection
  • People counting support: flow counting + crowd density monitoring
  • LightHunter low-light performance + up to 130dB Optical WDR
  • IP67 weatherproof + IK10 vandal protection

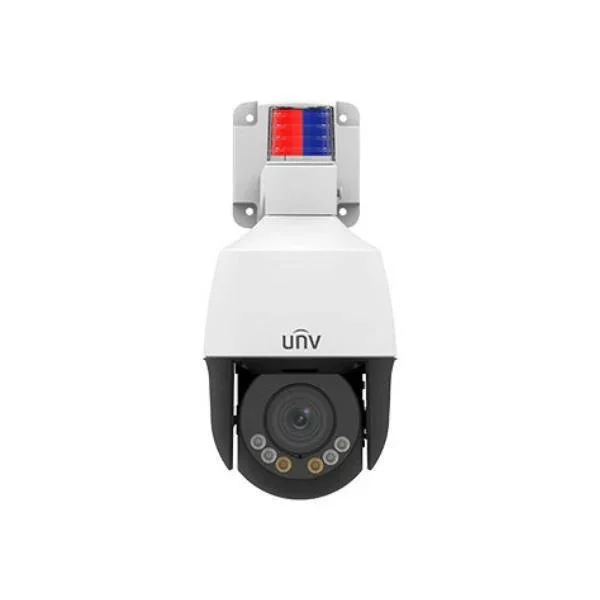

2MP LightHunter Active Deterrence PTZ

Model: IPC6312LFW-AX4C-VG   •   MSKU: 4318

  • Highly visible deterrence using red/blue strobe light with integrated siren
  • Two-way audio with built-in microphone and speaker for live talk-down
  • LightHunter technology for enhanced low-light and nighttime clarity
  • Smart human body detection with powerful IR illumination up to 164 ft

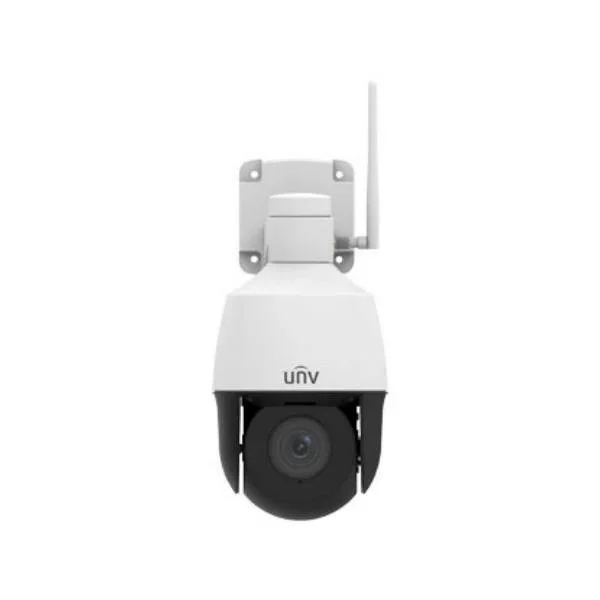

UNV 2MP LightHunter Wi-Fi PTZ with IR Network

Model: IPC6312LR-AX4W-VG   •   MSKU: 4319

  • 2MP imaging using a 1/2.7" CMOS sensor
  • LightHunter technology for improved low-light and night performance
  • Up to 120dB Optical WDR for glare and harsh lighting conditions
  • Built-in Wi-Fi for flexible and simplified installation
  • Integrated microphone & speaker with microSD support up to 256GB
  • Smart IR illumination up to 50 m (164 ft) with IP66 outdoor protection

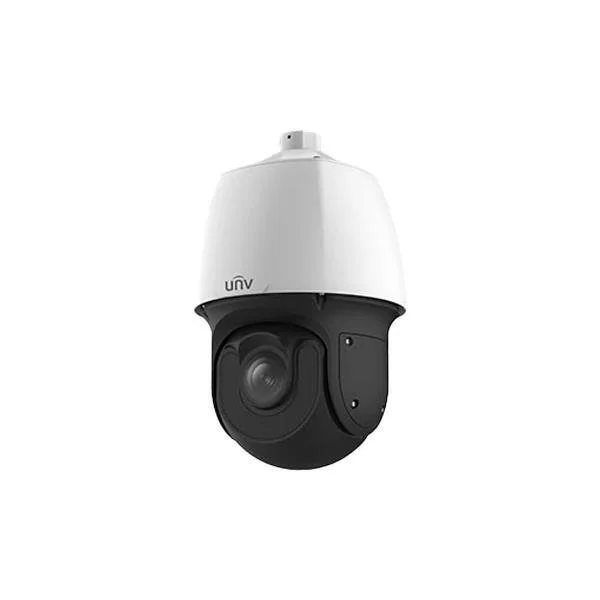

4K LightHunter Autotracking PTZ (25× Zoom)

Model: IPC6658SR-X25-VF   •   MSKU: 4320

  • 8MP (4K) imaging with a large 1/1.8" CMOS sensor for sharp detail
  • Autotracking PTZ with 25× optical zoom for active monitoring and coverage
  • Smart intrusion prevention with false-alarm filtering (line, intrusion, enter/leave)
  • People flow counting + crowd density monitoring (use-case dependent)
  • Smart IR illumination up to 200m (656 ft) for large sites and perimeters
  • IP66 ingress protection for outdoor installs

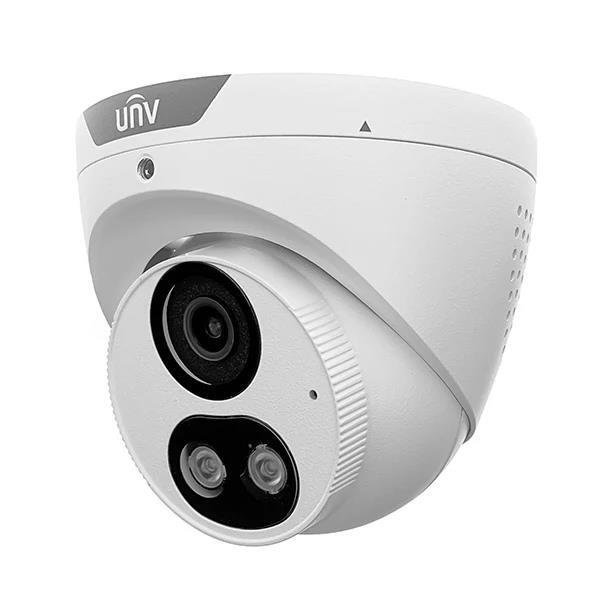

4K Tri-Guard Turret (24/7 Color + Active Deterrence)

Model: IPC3618SB-ADF28KMC-I0   •   MSKU: 4321

  • 8MP (4K) turret with ColorHunter technology for true 24/7 full-color video
  • Active deterrence using sound and warning light to discourage intruders
  • Deep-learning AI accurately classifies humans and vehicles to reduce false alarms
  • Built-in microphone and speaker with Smart IR up to 30m (98 ft)
  • IP67 weather-rated housing for indoor or outdoor installations

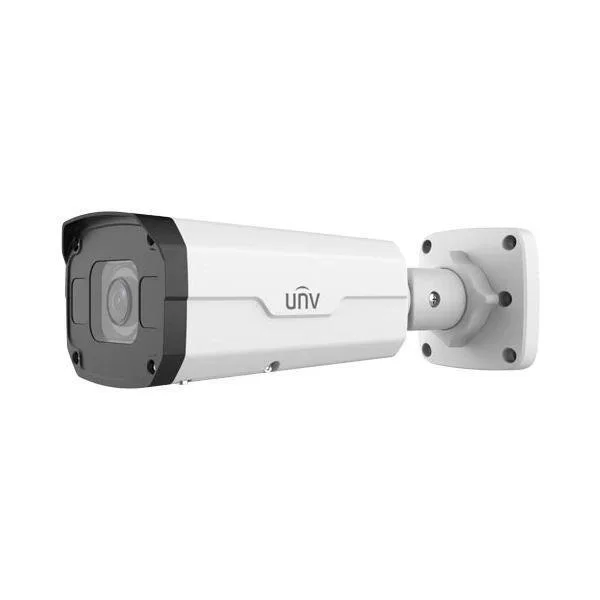

4K UltraHD (8MP) Prime I Bullet — Motorized Varifocal + LightHunter

Model: IPC2328SB-DZK-I0   •   MSKU: 4322

  • 8MP (4K Ultra HD) bullet camera for sharp identification and evidence capture
  • Motorized varifocal lens (2.8–12mm) for precise on-site field-of-view adjustment
  • LightHunter technology improves visibility in low-light and nighttime conditions
  • NDAA-compliant Prime I series for compliance-focused commercial deployments
  • IP67-rated weatherproof housing for reliable outdoor installation

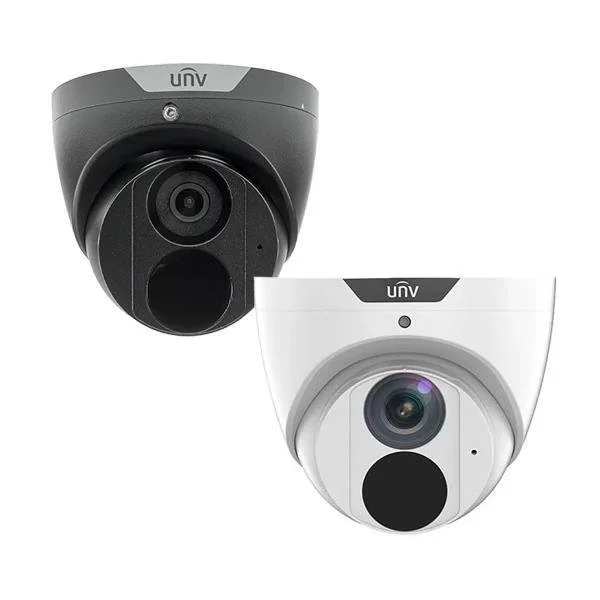

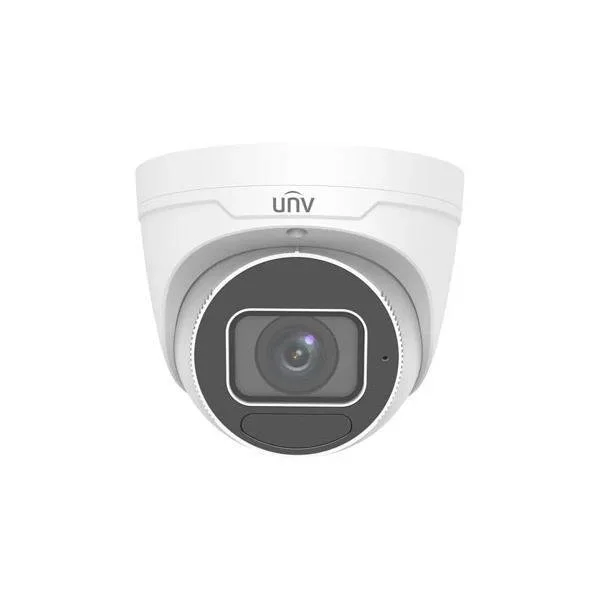

4K UltraHD (8MP) Prime I Turret

Model: IPC3638SB-ADZK-I0   •   MSKU: 4323

  • 8MP (4K Ultra HD) turret camera for high-detail identification
  • Motorized varifocal lens (2.8–12mm) for flexible field-of-view control
  • LightHunter technology enhances low-light and nighttime visibility
  • 120dB true WDR with 9:16 corridor mode support
  • Built-in microphone, Smart IR up to 40m, IK10 vandal rating, IP67 weatherproof
  • NDAA-compliant Prime I series for regulated commercial environments

4K UltraHD (8MP) Prime I Vandal Dome — Motorized Varifocal + LightHunter

Model: IPC3238SB-ADZK-I0   •   MSKU: 4324

  • 8MP (4K) resolution up to 3840×2160 @ 20fps with 1/2.8" progressive scan CMOS
  • Motorized varifocal lens (2.8–12mm) with wide-to-tight field of view (107.4°–29.2°)
  • LightHunter + IR illumination with IR range up to 130ft for night coverage
  • Deep AI human & vehicle detection with smart events (cross line, intrusion, area enter/exit)
  • Built-in microphone, ONVIF support, Ultra H.265/H.265/H.264 compression (up to 16Mbps)
  • Commercial hardening: IP67 weatherproof + IK10 vandal rating, microSD up to 256GB, PoE or 12V DC

4K UltraHD ColorHunter 24/7 Color Bullet

Model: IPC2228SE-DF40K-WL-I0   •   MSKU: 4325

  • 8MP (4K UltraHD) resolution for crisp identification
  • ColorHunter technology delivers true 24/7 full-color video
  • 120dB true WDR for strong backlight and high-contrast scenes
  • Supports 9:16 corridor mode for hallways and vertical coverage
  • Audio I/O (1 in / 1 out) and alarm I/O support
  • Built-in microSD support up to 256GB
  • IK10 vandal-resistant housing with IP67 weather protection
  • PoE powered for simplified commercial installation

4K UltraHD (8MP) Prime I Turret — Fixed Lens + AI

Model: IPC3618SB-ADF28KM-I0   •   MSKU: 4326

  • 8MP (4K Ultra HD) turret camera for high-detail identification
  • Fixed 2.8mm lens for wide, consistent coverage
  • Deep-learning AI targets humans, motor vehicles, and non-motor vehicles
  • 120dB true WDR for harsh lighting and backlight scenes
  • 9:16 corridor mode support for narrow spaces and hallways
  • Built-in microphone, Smart IR up to 30m (98ft), microSD support (up to 256GB), IP67 weatherproof, PoE

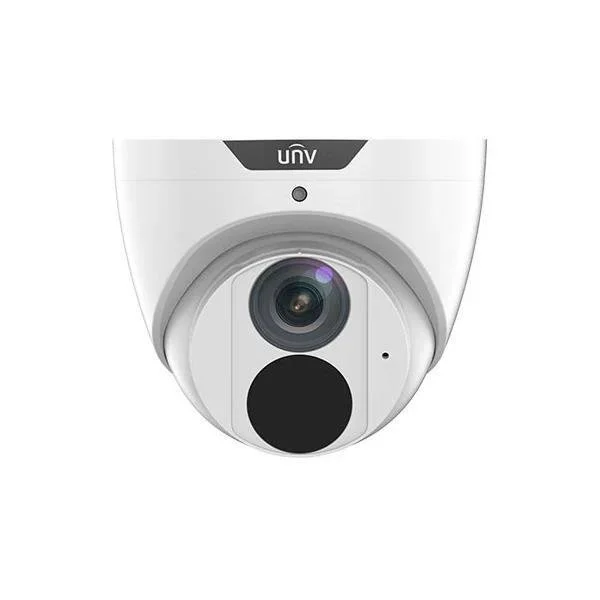

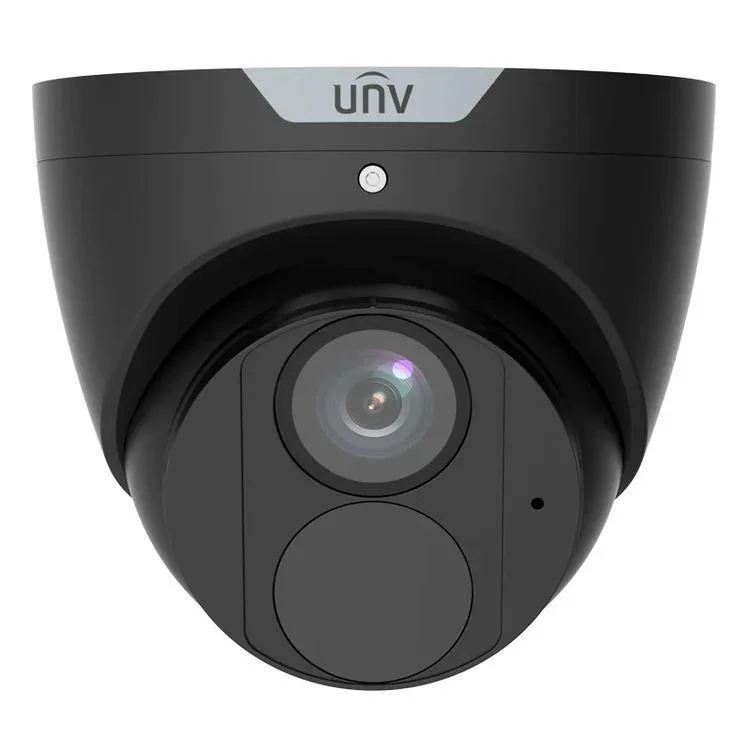

4K UltraHD (8MP) Prime I NDAA Weatherproof Turret (2.8mm Fixed)

Model: IPC3618SB-ADF28KM-I0-BK   •   MSKU: 4327

  • 8MP (4K Ultra HD) turret camera for sharp identification and evidence capture
  • 2.8mm fixed lens for a consistent wide field-of-view
  • Deep-learning AI targets humans, motor vehicles, and non-motor vehicles to reduce false alerts
  • 120dB true WDR for strong backlight and harsh lighting conditions
  • 9:16 corridor mode support (great for doors, hallways, and aisles)
  • Built-in mic, Smart IR up to 30m (98ft), microSD support up to 256GB, IP67, PoE

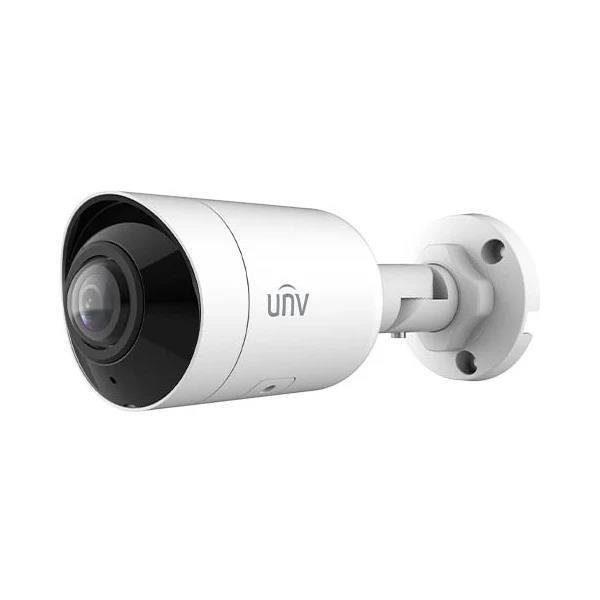

4K UltraHD Wide Angle Weatherproof Bullet (180°)

Model: IPC2108SB-ADF16KM-I0   •   MSKU: 4328

  • 8MP image quality with 1/2.7" CMOS sensor
  • Multi-stream support: 8MP (3840×2160) @ 30/25fps; 5MP (3072×1728) @ 30/25fps; 4MP (2560×1440) @ 30/25fps; 2MP (1920×1080) @ 30/25fps
  • Wide Angle technology delivers a 180° horizontal viewing angle
  • Dewarp level configurable from 1–9 for corrected viewing
  • Smart intrusion prevention (cross line, intrusion, enter area, leave area) with target classification to reduce false alarms (human / motor vehicle / non-motor vehicle)
  • 120dB true WDR + Auto Scene Match (ASM) for strong backlight scenes; built-in mic; Smart IR up to 20m (66ft); supports up to 256GB microSD; IP67 protection

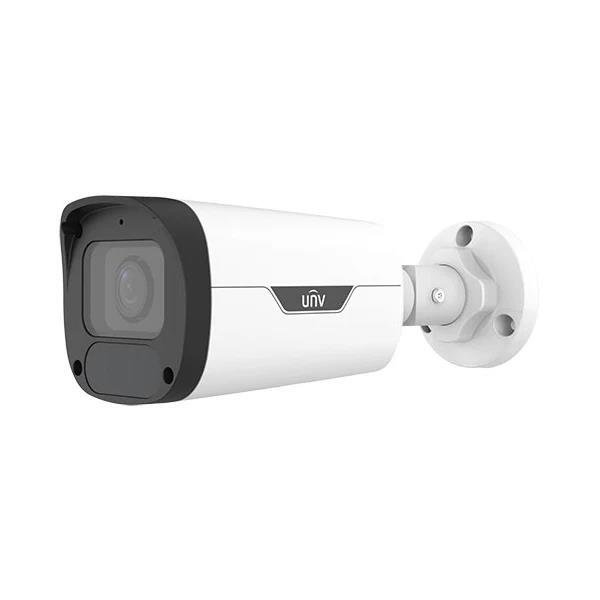

4MP Bullet Prime I NDAA — Motorized Varifocal + Built-in Mic

Model: IPC2324SR5-ADZK-H   •   MSKU: 4329

  • High-quality 4MP imaging with 1/3" CMOS sensor
  • Multiple stream options up to 4MP (2688×1520) @ 25/20fps
  • Ultra 265 / H.265 / H.264 / MJPEG compression support
  • 120dB true WDR for strong backlight and harsh lighting
  • 9:16 corridor mode support for doors, hallways, and aisles
  • Built-in mic, Smart IR up to 50m (164ft), microSD up to 256GB, IP67, PoE, 3-axis adjust

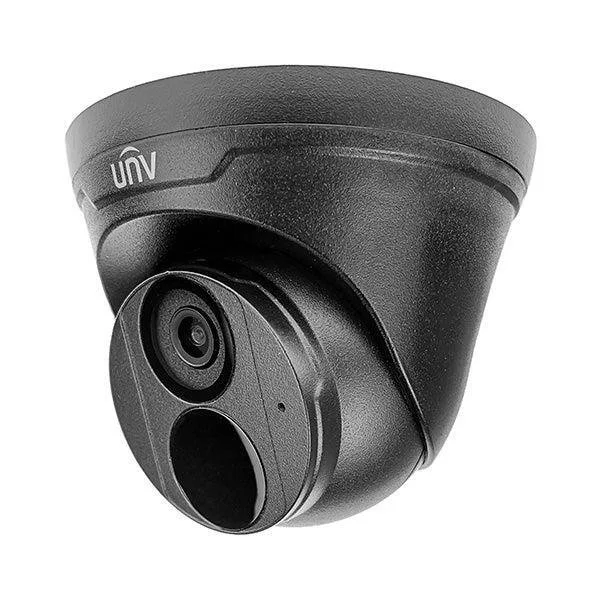

4MP Dark Grey Weatherproof IR Turret (Built-In Mic)

Model: IPC3614SR3-ADF28K-G-BK   •   MSKU: 4330

  • 4MP IP turret camera with day/night functionality for continuous coverage
  • Smart IR illumination up to 30m (98ft) for reliable nighttime visibility
  • Up to 120dB Wide Dynamic Range for challenging lighting conditions
  • Built-in microphone with triple-stream support (Ultra265, H.264, MJPEG)
  • MicroSD card support up to 256GB, ONVIF conformant
  • IP67 weatherproof housing, wide temperature range, and 3-axis adjustment

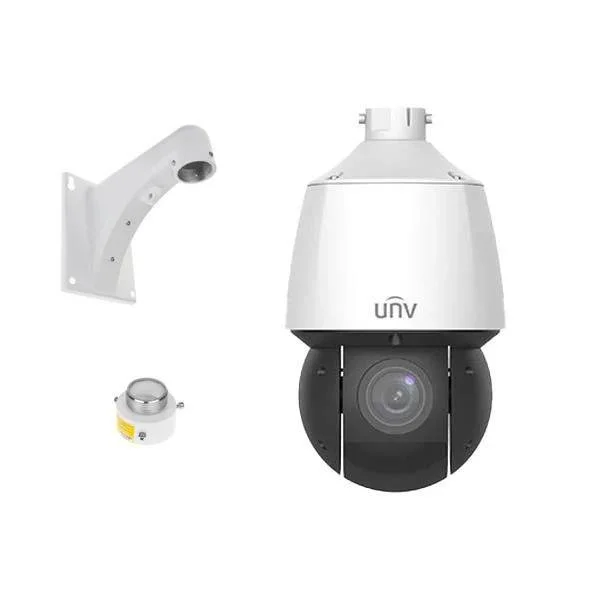

UNV 4MP Deep Learning PTZ (25× Zoom) — LightHunter + AI Autotracking

Model: IPC6424SR-X25-VFB   •   MSKU: 4331

  • 4MP (2688 × 1520) up to 30 FPS for clear identification
  • 25× motorized zoom (4.8–120mm) with wide-to-tight field-of-view control
  • Infrared night vision with Smart IR range up to 330 ft
  • Deep-learning AI + autotracking (intrusion, line-cross, enter/exit, face detect, people counting, crowd density)
  • Ultra H.265 / H.265 / H.264 compression (up to 16 Mbps)
  • IP67 weatherproof + IK10 vandal rating, ONVIF support, microSD up to 256GB, PoE+ or 12V DC

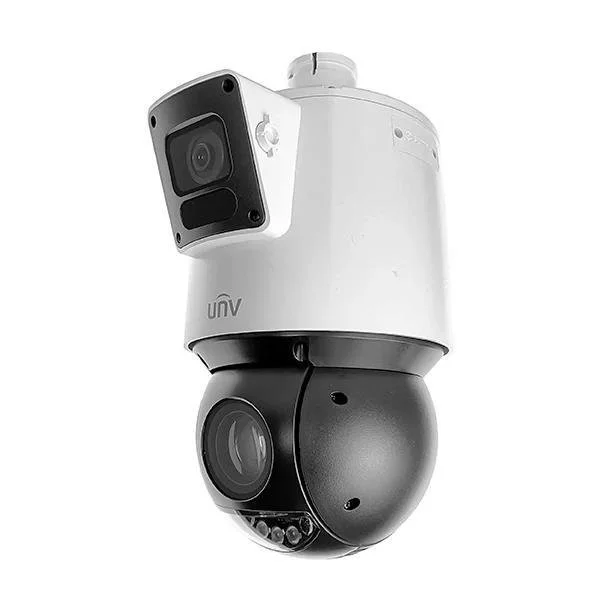

UNV 4MP Dual-Lens Weatherproof PTZ (25× Zoom + Fixed)

Model: IPC94144SR-X25-F40C   •   MSKU: 4332

  • Dual channels, single IP: fixed overview + PTZ details at the same time
  • 4MP imaging with 1/2.7" CMOS sensor
  • 25× optical zoom on PTZ channel for close-in subject viewing
  • Smart intrusion prevention with false-alarm filtering (cross line, intrusion, enter/leave area)
  • People counting support: people flow counting + crowd density monitoring
  • Lighthunter low-light performance + sound & light warning
  • Power: DC 12V or PoE+ (IEEE 802.3at) • Alarm 2 in / 1 out • Audio 1 in / 1 out

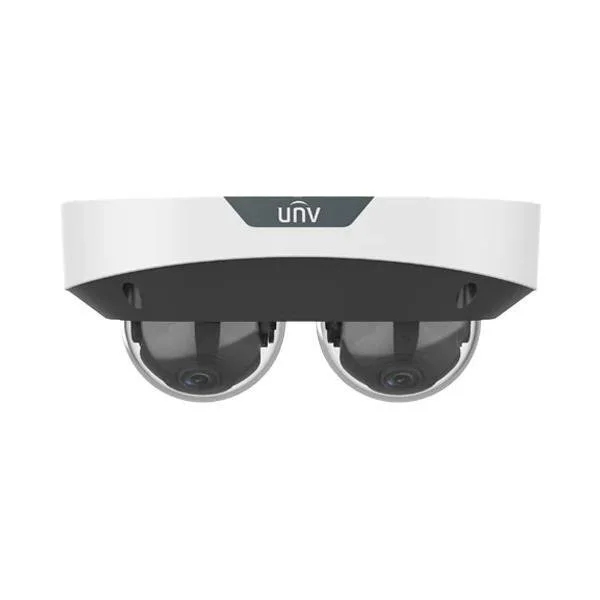

4MP Dual-Lens Dual-Channel Vandal Dome (Non-Splicing)

Model: IPC3224SS-ADF28K-I1   •   MSKU: 4333

  • Dual 4MP lenses (2 × 2688×1520 @ 20fps) over a single network cable
  • Non-splicing design delivers two independent camera channels
  • LightHunter technology with up to 130dB true WDR for low-light clarity
  • Smart intrusion prevention and Ultra Motion Detection on both channels
  • Face capture, people flow counting, and crowd density (Channel 1)
  • Smart IR up to 30m (100ft), dual built-in microphones
  • MicroSD support up to 256GB, IK10 vandal-rated, IP67 weatherproof
  • NDAA-compliant for regulated commercial environments

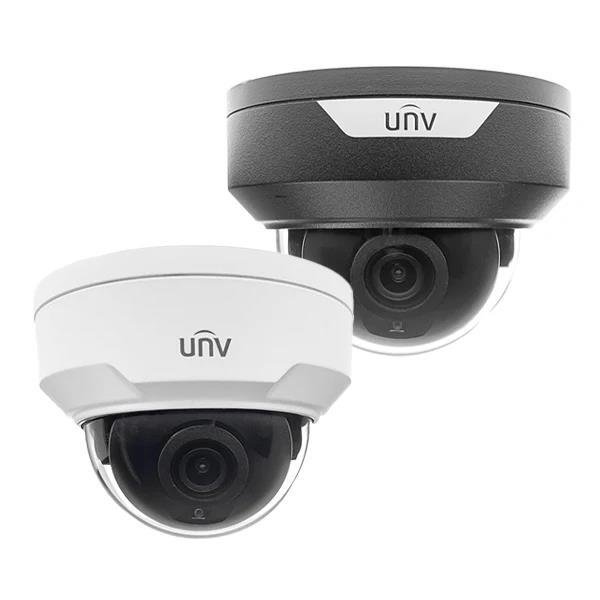

4MP Easystar NDAA Vandal Dome (2.8mm)

Model: IPC324SR-ADF28KM-H   •   MSKU: 4334

  • High-quality 4MP imaging with 1/3" CMOS sensor
  • Multiple stream options up to 2688×1520 @ 25/20fps
  • Easystar low-light technology for clearer images in low illumination
  • 120dB true WDR for strong backlight and harsh lighting scenes
  • Smart IR up to 98ft, supports up to 256GB microSD storage
  • IK10 vandal-resistant + IP67 weather protection, PoE powered, 3-axis adjustment

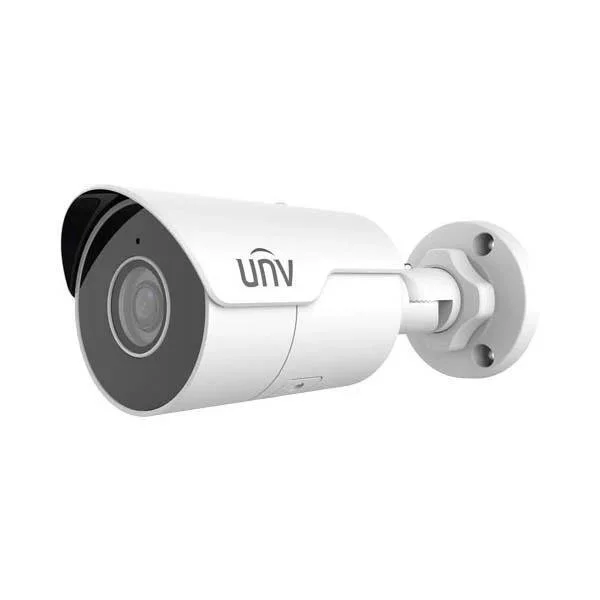

UNV 4MP Easystar Weatherproof Bullet (2.8mm Fixed + Mic)

Model: IPC2124SR-ADF28KM-H   •   MSKU: 4335

  • 4MP image quality with 1/3" CMOS sensor for clear everyday coverage
  • Easystar low-illumination technology for stronger low-light image quality
  • 120dB true WDR for clearer video in strongly lit / backlit scenes
  • 9:16 corridor mode support for hallways, doors, and aisles
  • Built-in mic, Smart IR up to 164ft, supports up to 256GB microSD
  • Ultra 265 / H.265 / H.264 / MJPEG, IP67 weather protection

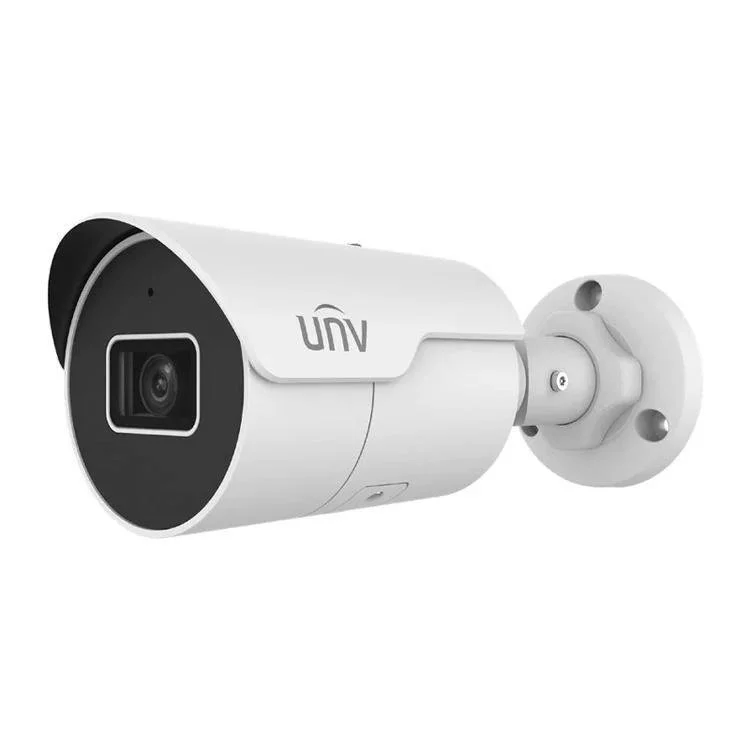

4MP Easystar Weatherproof Bullet IP Camera

Model: IPC2124SR-ADF40KM-H   •   MSKU: 4336

  • 4MP (2688 × 1520) resolution with 1/3" CMOS sensor
  • Easystar technology for improved low-light image quality
  • 120dB true WDR for strong backlight environments
  • Built-in microphone and Smart IR up to 164 ft (50 m)
  • Supports 9:16 corridor mode for hallways and vertical scenes
  • Ultra 265 / H.265 / H.264 compression, PoE powered
  • IP67 weatherproof housing with 3-axis adjustment
  • Supports microSD card storage up to 512GB

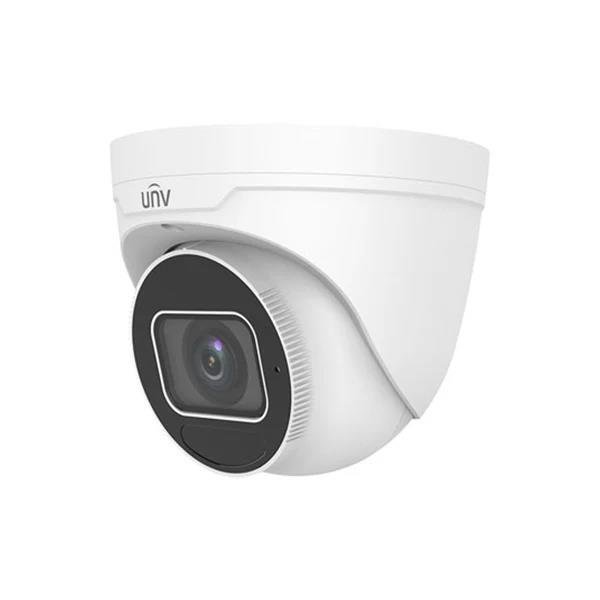

4MP NDAA LightHunter IR Varifocal Turret

Model: IPC3634SB-ADZK-I0   •   MSKU: 4337

  • 4MP imaging with 1/3" CMOS sensor (up to 2688×1520 @ 30/25fps)
  • Ultra 265 / H.265 / H.264 / MJPEG compression support
  • LightHunter technology for high image quality in low-light environments
  • 120dB true WDR for clearer images in strong backlight
  • 9:16 Corridor Mode support + built-in microphone
  • Smart IR up to 40m (131ft), microSD support up to 256GB, IK10 + IP67, PoE

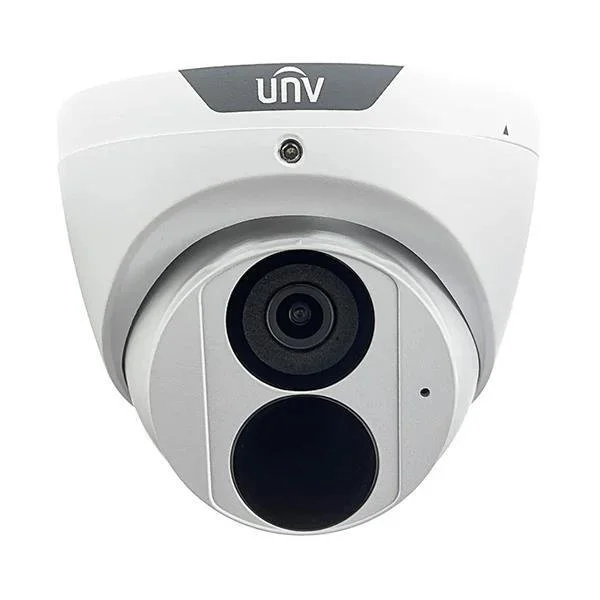

4MP Weatherproof IR Turret (Built-in Mic, 2.8mm)

Model: IPC3614SR-ADF28KM-H   •   MSKU: 4338

  • 4MP turret camera with day/night functionality
  • 2.8mm fixed lens for wide-area general coverage
  • Up to 120dB WDR for challenging backlight scenes
  • Smart IR up to 30m (98ft) for night visibility
  • Ultra 265 / H.264 / MJPEG with triple streams + ONVIF conformance
  • MicroSD support up to 256GB, IP67 weather rating, 2KV surge protection, 3-axis adjustment

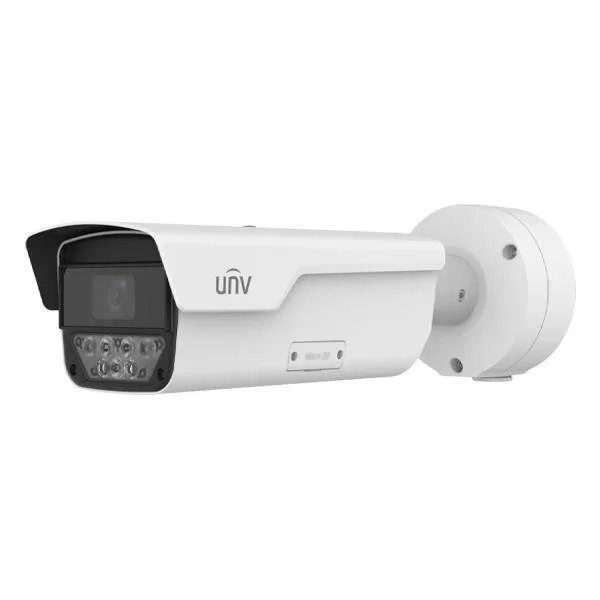

4MP License Plate Recognition (LPR) Weatherproof Bullet

Model: PKC2640@Z80-IR-P   •   MSKU: 4339

  • 4MP resolution (2688 × 1520 @ 30fps) optimized for license plate capture
  • Built-in license plate recognition algorithms supporting multiple countries
  • Motorized 8–32mm varifocal lens for long-range roadway and gate coverage
  • Vehicle allowlist/blocklist support with access control integration
  • Custom OSD overlays vehicle and plate data directly on video
  • Smart IR illumination, triple-stream support, and advanced H.265 compression
  • Built-in audio, MicroSD support up to 128GB with ANR failover recording
  • Cast aluminum housing with 3-axis mount, IP67 weatherproof and IK10 vandal-rated

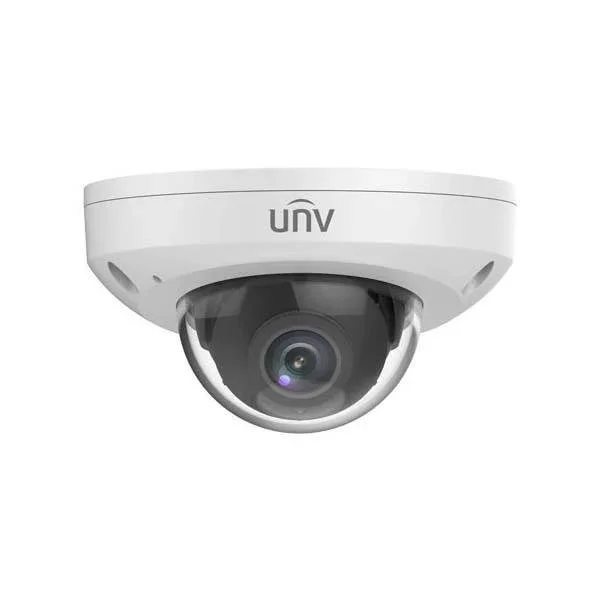

UNV 4MP LightHunter NDAA Weatherproof Mini Dome (2.8mm + Mic)

Model: IPC314SB-ADF28K-I0   •   MSKU: 4340

  • 4MP imaging (1/3" CMOS) with multiple stream options up to 2688×1520 @ 30/25fps
  • Ultra 265 / H.265 / H.264 / MJPEG compression support
  • LightHunter low-light performance + 120dB true WDR for harsh lighting
  • 9:16 corridor mode support for halls, doors, and tight vertical views
  • Built-in microphone + Smart IR up to 98ft; microSD support up to 256GB
  • IK10 vandal resistant + IP67 weather protection; PoE power; 3-axis adjustment

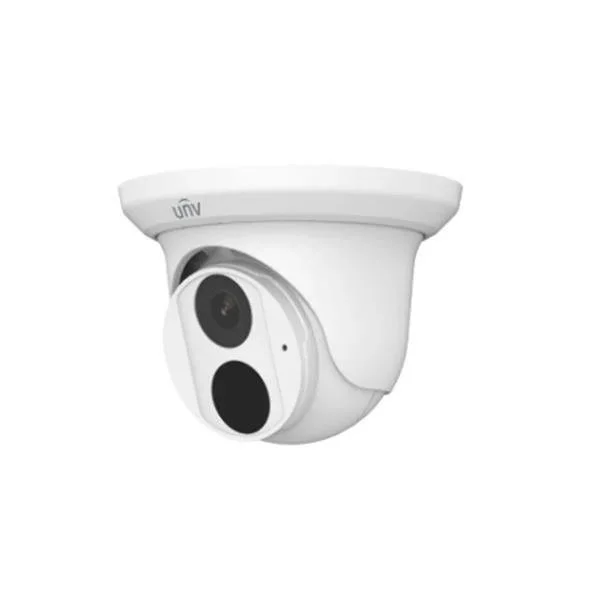

UNV 4MP NDAA Weatherproof IR Turret (2.8mm, Mic)

Model: EC-T4F28M-V3   •   MSKU: 4341

  • 4MP (2560 × 1440) imaging using a 1/2.9" CMOS sensor
  • Multi-stream options: 4MP @ 20fps, 3MP/1080p/720p up to 30fps (model dependent)
  • Ultra 265 / H.265 / H.264 / MJPEG compression support
  • Smart IR night vision up to 100ft (30m)
  • Built-in microphone, PoE power, and microSD support up to 128GB
  • IP67 weatherproof rating with 3-axis adjust for easy aiming

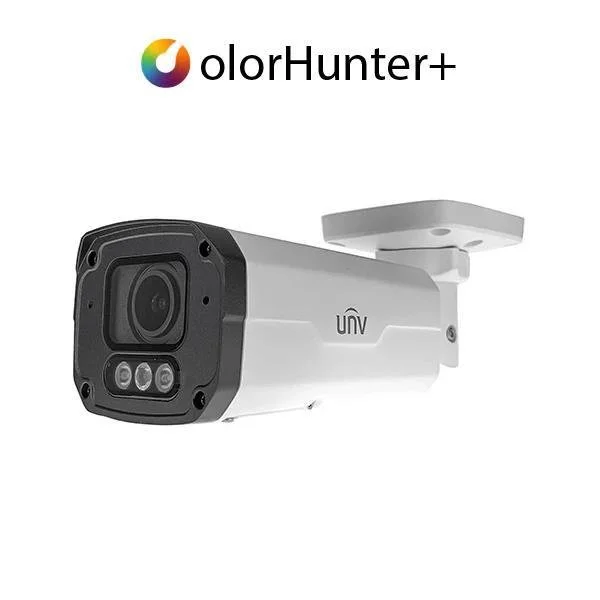

4MP NDAA ColorHunter+ 24/7 Color Bullet — Motorized Varifocal (2.8–12mm)

Model: IPC2324SE-ADZK-WL-I0   •   MSKU: 4342

  • ColorHunter+ illumination for 24/7 full-color footage
  • 4MP capture options up to 2688×1520 @ 30/25fps (plus 2560×1440, 2304×1296, 1920×1080)
  • Ultra 265 / H.265 / H.264 / MJPEG compression support
  • Deep-learning smart intrusion prevention (cross line, intrusion, enter/leave) with target classification to reduce false alarms
  • People flow counting + crowd density monitoring; 120dB true WDR and 9:16 corridor mode
  • Alarm I/O (1 in/1 out) + Audio I/O (1 in/1 out), microSD up to 256GB, IK10 + IP67, PoE

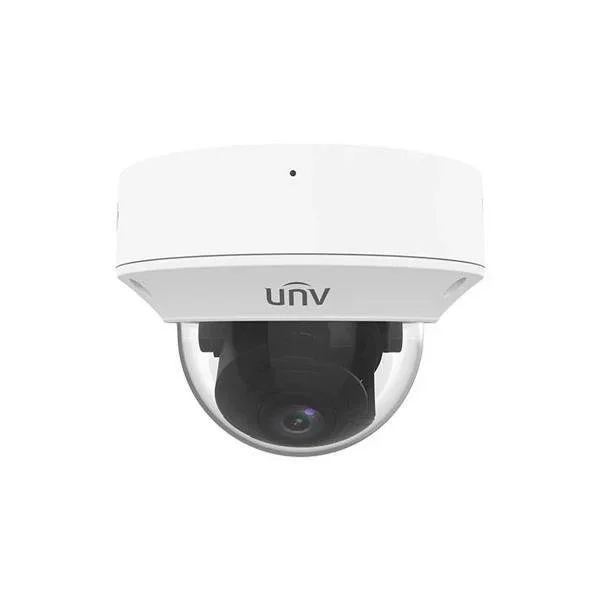

UNV 4MP NDAA Weatherproof Vandal Dome

Model: IPC3234SB-ADZK-I0   •   MSKU: 4343

  • 4MP resolution (up to 2688 × 1520 @ 30fps) for clear identification
  • Motorized varifocal lens (2.7–13.5mm) for flexible field-of-view adjustment
  • LightHunter technology for superior low-light performance
  • 120dB true WDR for challenging lighting conditions
  • Built-in microphone, Smart IR up to 130ft (40m)
  • IK10 vandal resistance, IP67 weatherproofing, PoE support, NDAA compliant

UNV 4MP Tri-Guard HD NDAA Bullet (Fixed 2.8mm)

Model: IPC2124SB-ADF28KMC-I0   •   MSKU: 4344

  • 4MP (2688 × 1520) IP bullet camera up to 30fps
  • Fixed 2.8mm lens with ~101.1° field of view for wide coverage
  • Infrared or color mode with IR range up to 100 ft
  • Active deterrence with lights & sounds + two-way audio
  • AI smart events: intrusion, cross-line, area entrance/exit, face detection, people counting + crowd density monitoring
  • Ultra H.265/H.265/H.264, IP67, microSD up to 256GB, PoE (max 11.5W)

UNV 4MP Tri-Guard NDAA Weatherproof Turret (24/7 Color + Active Deterrence)

Model: IPC3614SB-ADF28KMC-I0   •   MSKU: 4345

  • 4MP (2688×1520) up to 30 FPS for clear identification
  • 2.8mm fixed lens with ~101.1° field of view
  • Tri-Guard active deterrence (lights + sounds) with 2-way audio (mic + speaker)
  • Infrared or Color Mode illumination with IR range up to 100ft
  • Deep-learning AI events: cross-line, intrusion, area enter/exit, face detection, people counting, crowd density
  • Ultra H.265 / H.265 / H.264, ONVIF compatible, IP67 weatherproof, onboard storage up to 256GB, DC12V or PoE

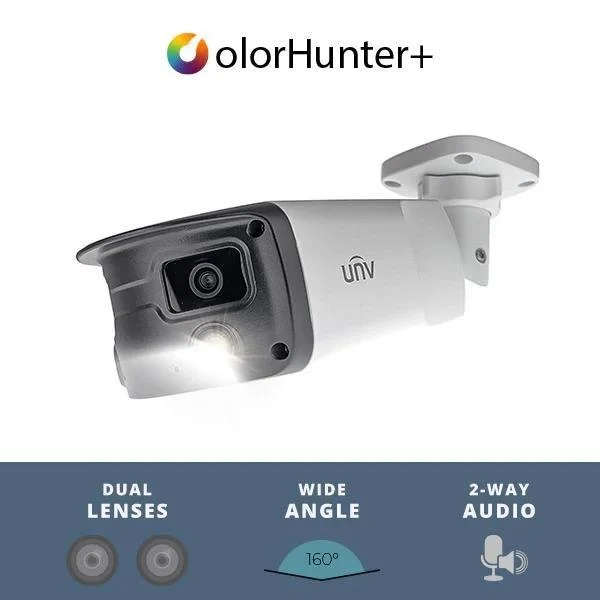

UNV 4MP Wide Angle 24/7 ColorHunter Bullet (Dual Lens)

Model: IPC2K24SE-ADF40KMC-WL-I0   •   MSKU: 4346

  • 4MP HD video (3840×1080) @ 25fps
  • Dual-lens splicing for a wide horizontal viewing angle (~160°)
  • Deep-learning AI human body detection support
  • ColorHunter technology delivers 24/7 full-color imaging
  • Built-in speaker + dual mics for two-way audio
  • Supports microSD storage up to 256GB

Dual-Spectrum Thermal Bullet (Active Deterrence)

Model: TIC2621SR-F3-4F4AC-VD   •   MSKU: 4347

  • Dual-spectrum imaging: 720p thermal + 4MP optical video in one camera
  • Fire + smoke detection and abnormal temperature monitoring
  • Smart intrusion prevention for virtual perimeters and real-time alerts
  • Picture-in-picture mode to compare thermal and optical views
  • Active deterrence with warning lights and audible alerts
  • Ultra 265 / H.265 / H.264 / MJPEG, PoE or 12V DC, microSD up to 256GB

Thermal & Optical Dual-Spectrum Bullet (Active Deterrence)

Model: TIC2A32SA-F3-4F4AC-I1   •   MSKU: 4348

  • Dual-spectrum imaging with thermal + optical video from a single IP address
  • Optical resolution up to 2688×1520 @ 30fps plus thermal resolution up to 960p
  • Thermal-based fire detection, smoking detection, and fire-shield area monitoring
  • Temperature detection with hot & cold spot tracking and alarm linkage
  • AI-powered smart intrusion prevention (cross line, intrusion, enter/leave area)
  • Picture-in-picture mode for real-time thermal and optical comparison
  • Built-in red & blue warning lights with audio alarm for active deterrence
  • PoE or 12V DC power, alarm I/O, audio I/O, microSD support up to 512GB

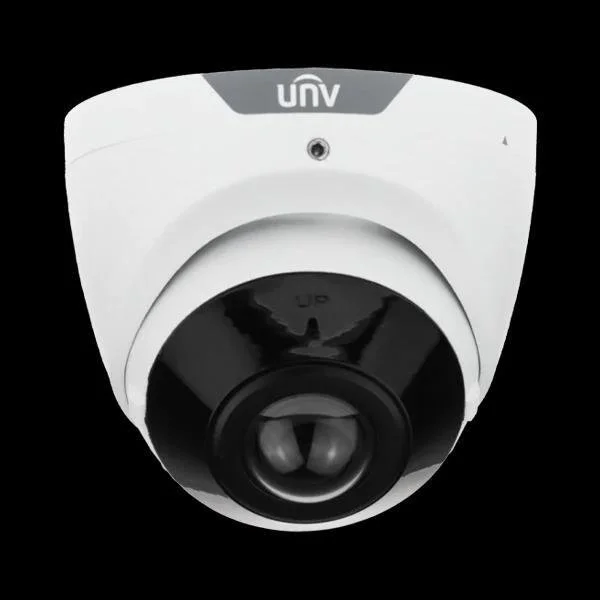

5MP Wide Angle 180° NDAA IR Fixed Turret

Model: IPC3605SB-ADF16KM-I0   •   MSKU: 4349

  • 5MP (2880 × 1620) imaging with 1/2.7" CMOS sensor
  • Ultra-wide 180° horizontal field of view with configurable de-warp (levels 1–9)
  • Deep learning AI intrusion prevention (human, motor vehicle, non-motor vehicle classification)
  • Smart intrusion detection: cross line, intrusion, enter area, leave area
  • 120dB true WDR for strong backlight and high-contrast environments
  • Built-in microphone, Smart IR up to 66 ft (20 m)
  • Supports up to 256GB microSD, IK10 vandal resistant, IP67 weatherproof

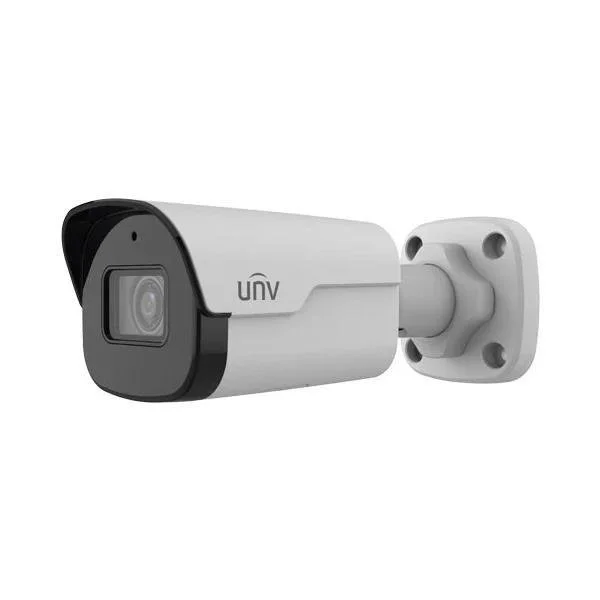

5MP LightHunter Bullet (Prime I, NDAA) — 2.8mm Fixed Lens

Model: IPC2125SB-ADF28KM-I0   •   MSKU: 4350

  • 5MP (2880×1620) imaging with 1/2.7" CMOS sensor
  • Supports multiple streams up to 5MP @ 25fps (down to 1080p @ 30/25fps)
  • Ultra 265 / H.265 / H.264 / MJPEG compression for efficient recording
  • LightHunter low-light technology + 120dB true WDR for harsh lighting
  • 9:16 corridor mode + built-in microphone
  • Smart IR up to 40m (131ft), microSD up to 256GB, IP67, PoE

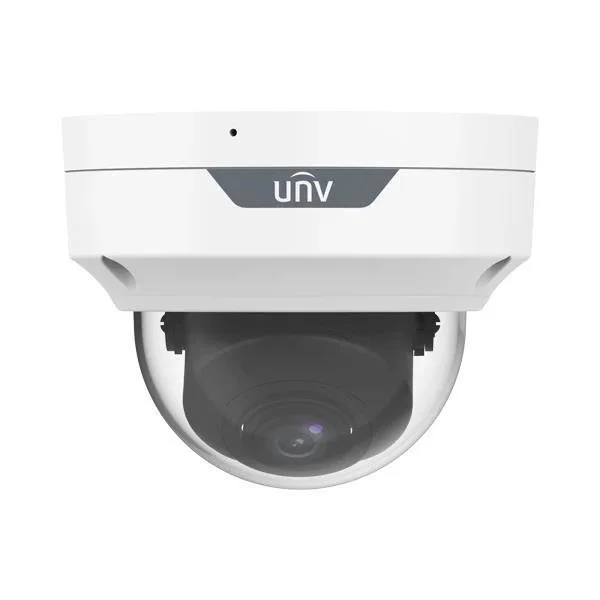

5MP LightHunter NDAA Vandal Dome with HDMI Output

Model: IPC3515SS-ADF28K-I1-HI   •   MSKU: 4351

  • 5MP resolution (2880×1620 @ 30fps) with 1/2.7" CMOS sensor
  • LightHunter technology for superior low-light performance
  • 130dB true WDR for clear images in high-contrast scenes
  • Advanced AI intrusion prevention with human, vehicle, and non-motor vehicle classification
  • People flow counting and crowd density monitoring support
  • Smart IR up to 40m (131 ft), HDMI output, IK10 vandal resistance
  • IP67 weatherproof housing with MicroSD support up to 512GB

5MP LightHunter Prime I NDAA Turret (2.8mm Fixed Lens)

Model: IPC3615SB-ADF28KM-I0   •   MSKU: 4352

  • High-quality 5MP imaging with a 1/2.7" CMOS sensor
  • Supports multiple streams up to 5MP (2880×1620) @ 25fps
  • LightHunter technology for stronger low-light performance
  • 120dB true WDR + 9:16 corridor mode for hallways and aisles
  • Built-in mic, Smart IR up to 30m (98ft), microSD support up to 256GB
  • IP67 weather protection (Prime I NDAA-compliant series)

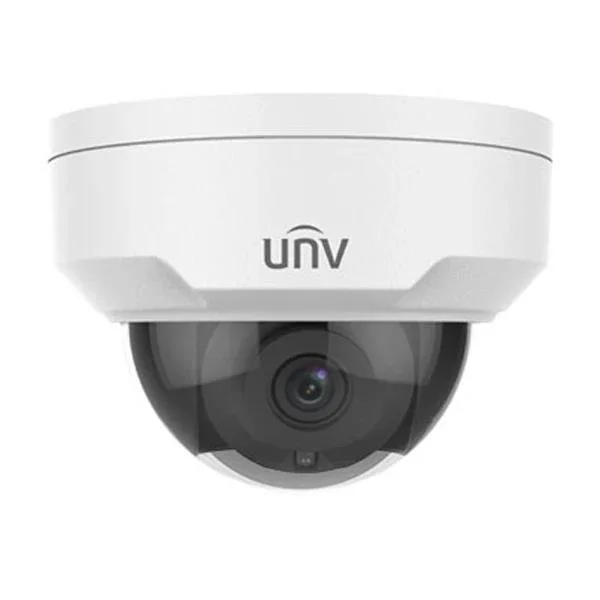

5MP LightHunter Prime I NDAA Vandal Dome

Model: IPC325SB-DF28K-I0   •   MSKU: 4353

  • 5MP imaging with 1/2.7" CMOS sensor for sharp, reliable coverage
  • LightHunter technology delivers superior low-light performance
  • 120dB true WDR for clear images in high-contrast lighting
  • Supports 9:16 corridor mode for hallways and vertical scenes
  • Smart IR up to 30m (98ft) for nighttime visibility
  • IK10 vandal resistance, IP67 weather protection, PoE powered
  • NDAA-compliant Prime I series for regulated commercial deployments

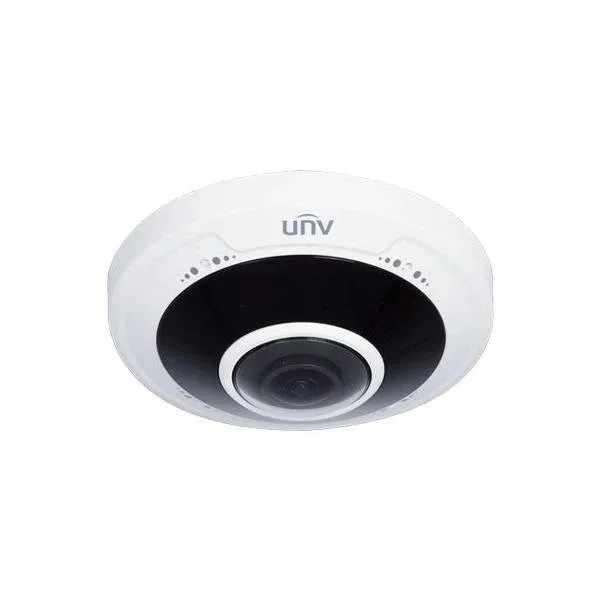

5MP NDAA 360° Fisheye IP Camera (IR + Heat Map)

Model: IPC815SB-ADF14K-I0   •   MSKU: 4354

  • 5MP fisheye with full 360° field of view for single-camera room coverage
  • Max resolution 2592×1944 up to 30 FPS
  • Infrared illumination with IR range up to 30ft
  • Ultra H.265 / H.265 / H.264 compression with up to 16Mbps bitrate
  • Built-in microphone + onboard storage support up to 256GB
  • Rugged IK10 vandal rating + IP66 weather protection; PoE or 12VDC power

5MP Tri-Guard NDAA Mini PTZ Dome — Active Deterrence

Model: IPC6325LFW-AX5C-VG   •   MSKU: 4355

  • 5MP (2880 × 1620) imaging with 1/2.8" CMOS sensor at up to 30fps
  • 24/7 full-color illumination with dual-light active deterrence
  • 5× optical zoom PTZ with intelligent autotracking
  • Deep-learning AI with smart intrusion prevention and false-alarm filtering
  • Built-in microphone and speaker for audio deterrence
  • LightHunter technology for ultra-high image quality in low light
  • Smart IR up to 164ft (50m) and warm light up to 49ft (15m)
  • IP66 weather protection, MicroSD support up to 512GB
  • Ultra 265 / H.265 / H.264 / MJPEG compression
  • DC12V or PoE (IEEE 802.3at) power options

UNV 8MP 4K UltraHD NDAA Weatherproof Bullet (2.8mm + Mic)

Model: IPC2128SR-ADF28KM-H   •   MSKU: 4356

  • 8MP 4K UltraHD imaging with 1/2.7" CMOS sensor
  • Multi-stream support: 8MP @ 20fps; 5MP/4MP/2MP up to 30/25fps
  • Ultra 265 / H.265 / H.264 / MJPEG compression
  • Easystar low-illumination technology + 120dB true WDR for harsh lighting
  • 9:16 corridor mode + built-in microphone
  • Smart IR up to 164ft (50m), microSD support up to 256GB, IP67, PoE, 3-axis adjustment

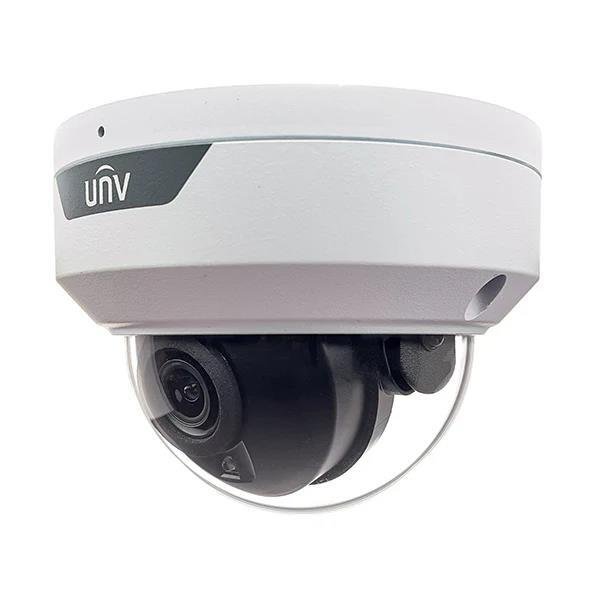

UNV 8MP 4K UltraHD Weatherproof Vandal Dome (2.8mm, Mic)

Model: IPC328SR-ADF28KM-H   •   MSKU: 4357

  • 8MP (4K Ultra HD) vandal dome for high-detail identification
  • 2.8mm fixed lens with LightHunter low-light enhancement
  • Multi-stream support: 8MP @ 20fps, 5MP @ 30/25fps, 4MP @ 30/25fps, 2MP @ 30/25fps
  • Ultra 265 / H.265 / H.264 / MJPEG compression
  • 120dB true WDR plus 9:16 corridor mode for hallways/aisles
  • Built-in microphone, Smart IR up to 98ft (30m), supports up to 256GB microSD
  • IK10 vandal resistant, IP67 weather protection, PoE power, 3-axis adjust

UNV 8MP 4K UltraHD Wide Angle 180° IR Fixed Turret (NDAA)

Model: IPC3608SB-ADF16KM-I0   •   MSKU: 4358

  • 8MP (4K Ultra HD) image quality with 1/2.7" CMOS sensor
  • Wide-angle 180° horizontal field of view + configurable dewarp level (1–9)
  • Smart intrusion prevention (cross line, intrusion, enter area, leave area) with target classification to reduce false alarms
  • Ultra 265 / H.265 / H.264 / MJPEG compression
  • 120dB true WDR + Auto Scene Match (ASM) for strong backlight scenes
  • Built-in mic, Smart IR up to 20m (66ft), IP67 weather protection, IK10 vandal resistance

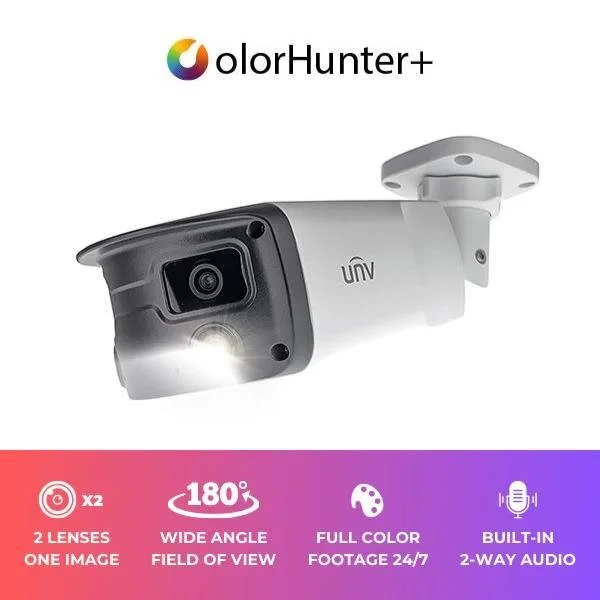

8MP 4K UltraHD Wide Angle 24/7 ColorHunter Bullet

Model: IPC2K28SE-ADF40KMC-WL-I0   •   MSKU: 4359

  • 8MP 4K Ultra HD video (5120 × 1440) at 20fps for wide-area clarity
  • Dual 4.0mm fixed lenses with stitched output for ~180° horizontal field of view
  • ColorHunter technology delivers true 24/7 full-color imaging
  • Deep-learning AI human body detection for accurate alerts
  • Built-in speaker and dual microphones for clear two-way audio
  • Supports MicroSD card storage up to 256GB

UNV 8MP HD IR Fixed Eye Turret (NDAA)

Model: IPC3618SR-ADF28KM-H   •   MSKU: 4360

  • 8MP (4K Ultra HD) resolution up to 3840×2160 @ 20fps
  • Fixed 2.8mm lens with wide 112.4° field of view
  • Infrared illumination with night vision up to 100ft
  • Ultra H.265 / H.265 / H.264 video compression
  • Built-in microphone with onboard microSD storage up to 256GB
  • IP67 weatherproof housing with PoE or 12V DC power
  • NDAA compliant for regulated commercial environments

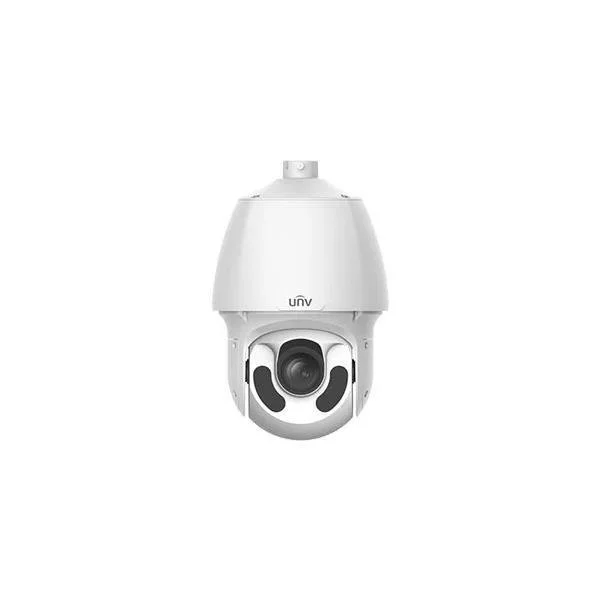

2MP NDAA Compliant PTZ — 33× Zoom + LightHunter

Model: IPC6622SR-X33-VF   •   MSKU: 4361

  • 2MP Full HD (1920 × 1080) PTZ camera with smooth 60 FPS video
  • Powerful 33× optical zoom (4.5–148.5mm) for long-range monitoring
  • LightHunter infrared illumination with IR range up to 500 ft
  • Advanced deep-learning AI: auto-tracking, intrusion detection, face detection, people counting, and crowd density monitoring
  • Ultra H.265 / H.265 / H.264 compression with up to 16 Mbps bitrate
  • IP66 weatherproof housing, AC 24V power, on-board storage up to 256GB

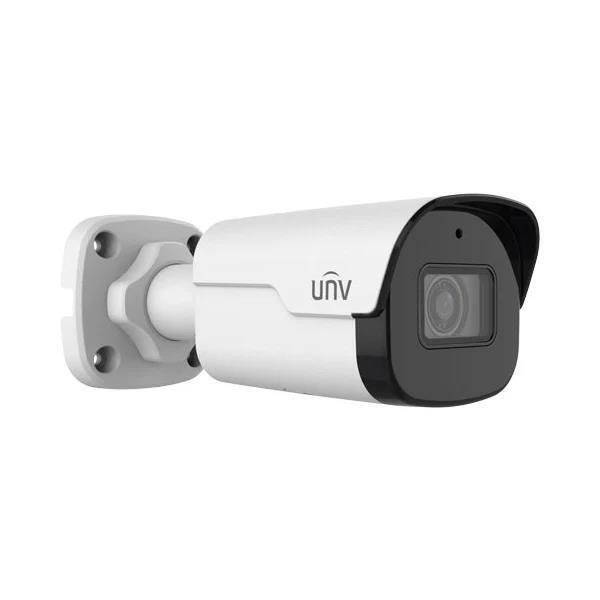

UNV FullHD 1080p (2MP) Prime I NDAA Weatherproof Bullet (2.8mm, LightHunter, Mic)

Model: IPC2122SB-ADF28KM-I0   •   MSKU: 4362

  • 2MP Full HD (1920×1080) at up to 30 FPS with 1/2.8" progressive scan CMOS
  • Fixed 2.8mm lens with wide 106.7° field of view
  • Infrared illumination with IR range up to 130 ft for night coverage
  • Ultra H.265 / H.265 / H.264 compression with up to 16Mbps bitrate
  • IP67 weatherproof rating + built-in microphone
  • ONVIF compatible + smart events (cross line, area enter/exit, intrusion) + microSD up to 256GB
  • DC12V or PoE power; max 6.0W

UNV FullHD 1080p (2MP) Prime I NDAA Weatherproof Turret (2.8mm, LightHunter IR, Mic)

Model: IPC3612SB-ADF28KM-I0   •   MSKU: 4363

  • 2MP Full HD (1920×1080) at up to 30 FPS with 1/2.8" progressive scan CMOS
  • Fixed 2.8mm lens with wide 106.7° field of view
  • Infrared night coverage with IR range up to 100 ft
  • Ultra H.265 / H.265 / H.264 compression with up to 16Mbps bitrate
  • IP67 weatherproof + built-in microphone + ONVIF compatible
  • Smart events (cross line, intrusion, area enter/exit, face detection, people counting, crowd density) + microSD up to 256GB
  • DC12V or PoE power; ≤ 5W

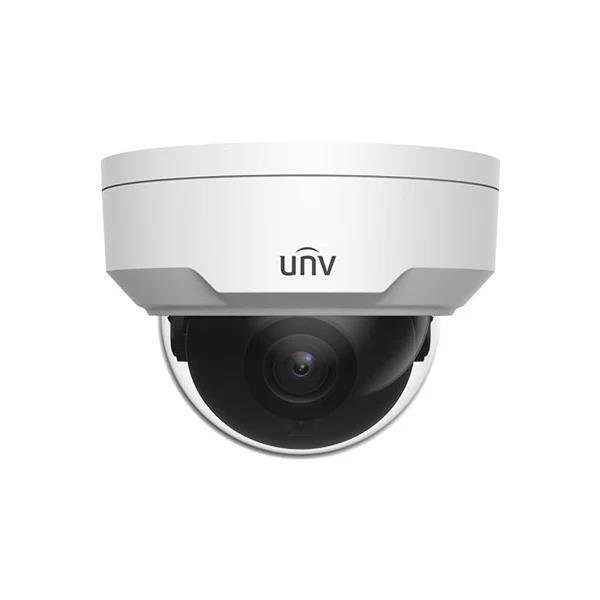

UNV FullHD 1080p (2MP) Prime I NDAA Weatherproof Vandal Dome (2.8mm, LightHunter, IR)

Model: IPC322SB-DF28K-I0   •   MSKU: 4364

  • 2MP Full HD (1920×1080) at up to 30 FPS with 1/2.8" progressive scan CMOS
  • Fixed 2.8mm lens with wide 106.7° field of view
  • Infrared night illumination with IR range up to 100 ft
  • Ultra H.265 / H.265 / H.264 compression for efficient storage and bandwidth
  • Rugged ratings: IP67 weatherproof + IK10 vandal resistance
  • ONVIF compatible + smart events (cross line, area enter/exit, intrusion, face detection, people counting, crowd density) + microSD up to 256GB
  • Power options: DC12V or PoE; max 5.0W

UNV FullHD 1080p 2MP Wi-Fi Indoor Cube Camera

Model: C1L-2WN-G   •   MSKU: 4365

  • 2MP Full HD (1920 × 1080) indoor IP camera at up to 30 FPS
  • Fixed 2.8mm lens with wide 110.1° field of view
  • Built-in infrared illumination with night vision up to 30 ft
  • Two-way audio with integrated microphone and speaker
  • Wi-Fi enabled for flexible indoor deployment
  • Human body detection with Ultra H.265 / H.265 / H.264 compression
  • Supports microSD storage up to 128GB; DC 5V power

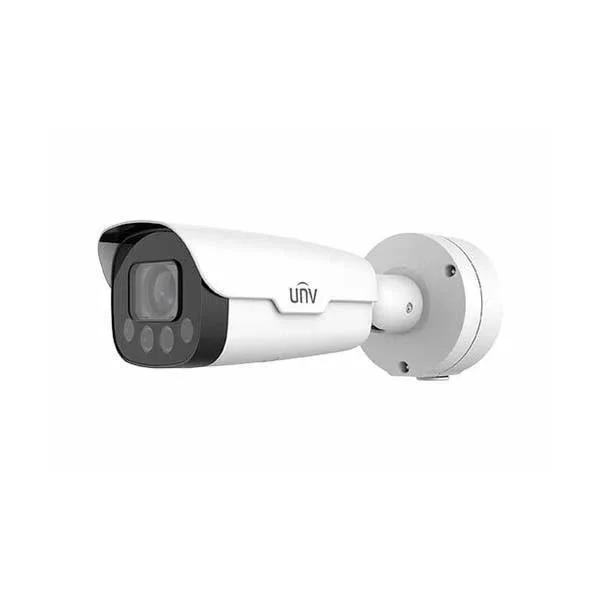

UNV FullHD 1080p 60fps ANPR / LPR Bullet Camera

Model: HC121@TS8CR-Z   •   MSKU: 4366

  • 2MP Full HD (1920×1080) imaging at up to 60 FPS for fast-moving vehicle capture
  • Purpose-built ANPR / LPR camera for license plate recognition applications
  • Motorized varifocal lens (4.7–47mm) for long-range roadway and gate coverage
  • Infrared illumination with night visibility up to 165 ft
  • Ultra H.265 / H.265 / H.264 compression with up to 16 Mbps bitrate
  • IK10 vandal-resistant + IP67 weatherproof housing for outdoor deployments
  • NDAA-compliant, ONVIF compatible, onboard storage up to 128GB, PoE+ or 12V DC

UNV OwlView Plus 4K Wise-ISP 24/7 Full Color Bullet

Model: IPC2B18SE-ADF28K-WP-I1   •   MSKU: 4367

  • 8MP (4K Ultra HD) bullet camera with 24/7 full-color imaging
  • Advanced 1/1.2" CMOS sensor with F1.0 lens for superior low-light performance
  • Wise-ISP image processing for enhanced brightness, clarity, and color accuracy
  • Built-in warm white light with illumination up to 40m
  • AI-powered perimeter protection with human and vehicle classification
  • 130dB true WDR for balanced imaging in high-contrast scenes
  • Built-in microphone, audio/alarm I/O, 9:16 corridor mode support
  • IK10 vandal resistant and IP67 weatherproof for demanding environments
  • Onboard storage support up to 512GB

OwlView Plus 4K Wise-ISP 24/7 Full-Color Turret (2.8mm, Mic)

Model: IPC3638SE-ADF28K-WP-I1   •   MSKU: 4368

  • Next-level low-light: large 1/1.2" CMOS + F1.0 lens with warm white light up to 100ft for true 24/7 color
  • Wise-ISP + ColorHunter processing for vibrant color and low-noise clarity in any lighting
  • True 4K (8MP) up to 3840×2160 @ 30fps for high-detail identification
  • Advanced AI intrusion detection classifies humans/vehicles to reduce false alarms
  • Intelligent analytics: people flow counting, crowd density monitoring, smart color-based search + Auto Scene Match (ASM)
  • Built for commercial sites: 130dB true WDR, IK10 + IP67, built-in mic, audio/alarm I/O, 9:16 corridor mode, microSD up to 512GB

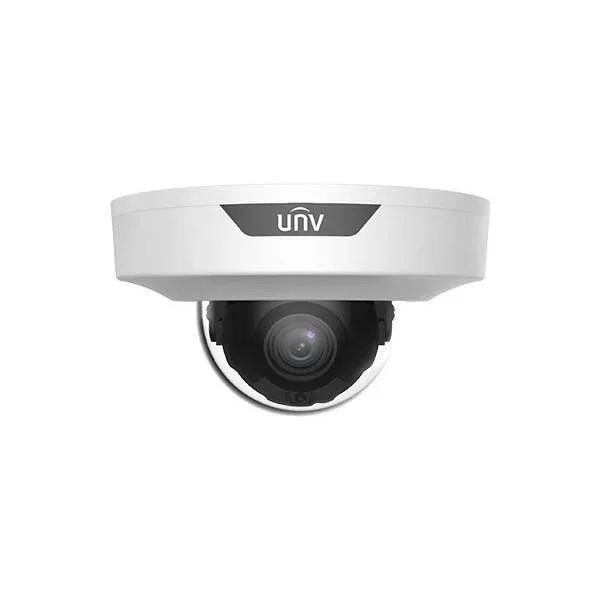

UNV Pigtail-Free Indoor NDAA-Compliant 4MP Mini Dome (2.8mm, LightHunter, Mic)

Model: IPC354SB-ADNF28K-I0   •   MSKU: 4369

  • 4MP (2688 × 1520) at up to 30 FPS for clear identification
  • Fixed 2.8mm lens with wide 101.1° field of view
  • LightHunter low-light performance with IR illumination up to 100 ft
  • Ultra H.265 / H.265 / H.264 compression with up to 16Mbps bitrate
  • Built-in microphone for onsite audio capture
  • ONVIF compatible + microSD support up to 256GB
  • DC12V or PoE power; max 4.5W

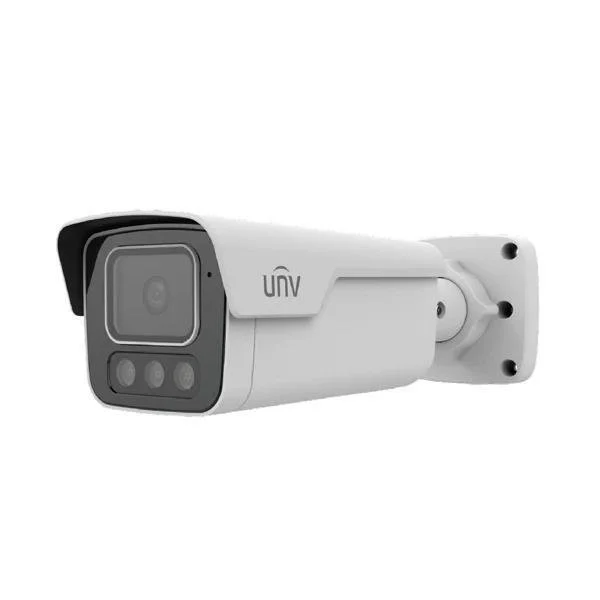

UNV Tri-Guard 2.0 5MP Active Deterrence Bullet

Model: IPC2B15SS-ADF28KMC-I1   •   MSKU: 4370

  • 5MP (2880×1620) imaging with 1/2.7" CMOS sensor
  • Red & blue warning lights plus white light for active deterrence
  • Built-in microphone and speaker for two-way audio
  • Smart intrusion prevention with human & vehicle classification
  • 130dB true WDR for clear images in high-contrast scenes
  • Smart IR illumination up to 40m (131 ft)
  • Supports microSD card up to 256GB

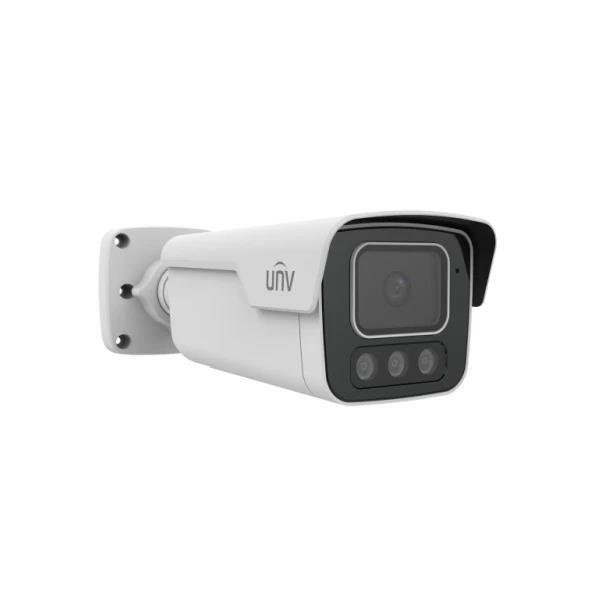

Tri-Guard 2.0 8MP 4K Active Deterrence Bullet

Model: IPC2B18SS-ADF28KMC-I1   •   MSKU: 4371

  • 8MP (4K Ultra HD) imaging with 1/2.8" CMOS sensor for sharp detail
  • Active deterrence with red & blue warning lights, white light, and IR LEDs
  • Intelligent perimeter protection with human and vehicle classification
  • 130dB true WDR for clear images in challenging lighting
  • Two-way audio with built-in microphone and speaker
  • Smart IR up to 40m (131 ft), IP67 weather protection, microSD support up to 256GB

UNV Tri-Guard 2.0 8MP 4K UltraHD Active Deterrence Turret (2.8mm, Two-Way Audio)

Model: IPC3638SS-ADF28KMC-I1   •   MSKU: 4372

  • 8MP (4K) imaging with 1/2.8" CMOS sensor (up to 3840×2160 @ 30/25fps)
  • Active deterrence: red & blue warning lights + white light
  • Intelligent perimeter protection + smart intrusion prevention (human/vehicle classification reduces false alarms)
  • 130dB true WDR for clear detail in strong backlight
  • Two-way audio: audio in/out with built-in microphone and speaker
  • Smart IR up to 30m (98.4 ft), 9:16 corridor mode, microSD support up to 256GB, IP67 protection

32MP 32-Channel Intelligent IQ Network Video Recorder (RAID)

Model: NVR508-32-E-IQ   •   MSKU: 4373

  • 32-channel network video recorder supporting cameras up to 32MP resolution
  • Ultra 265 / H.265 / H.264 compression for efficient storage and bandwidth use
  • Supports ONVIF profiles S, G, and T plus RTSP for broad camera compatibility
  • Dual HDMI and dual VGA outputs with independent display control
  • 8 hard drive bays with RAID support and N+1 hot spare capability
  • ANR technology protects recordings during network interruptions
  • Cloud upgrade support for simplified firmware management

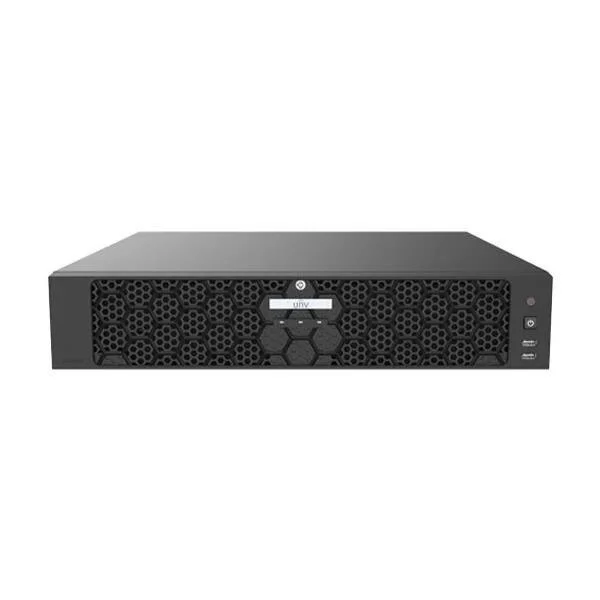

32MP UltraHD 32-Channel NVR (8-Bay, RAID Support)

Model: NVR508-32E-R   •   MSKU: 4374

  • Supports Ultra 265 / H.265 / H.264 video formats
  • 32-channel input
  • Works with mainstream cameras via ONVIF (Profile S/G/T) and RTSP
  • 2× HDMI + 2× VGA outputs with simultaneous pairing and independent display modes
  • Up to 32MP recording resolution + N+1 hot spare support
  • 8-bay hot-swap storage with RAID 0/1/5/6/10 + ANR + cloud upgrade support

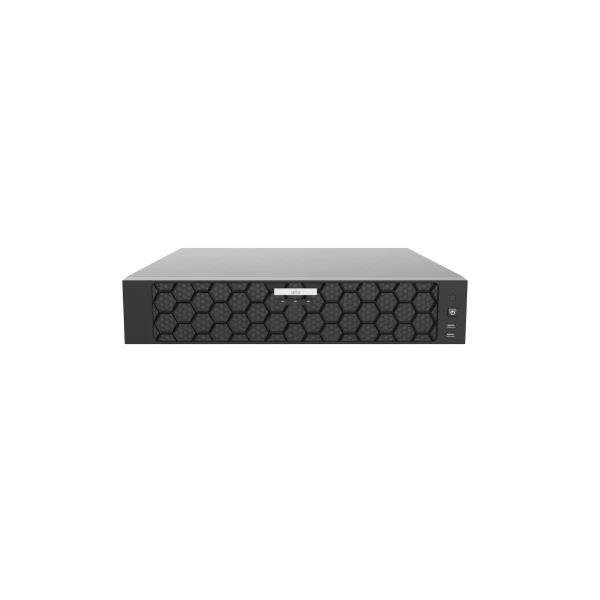

32MP UltraHD 64-Channel Intelligent IQ Network Video Recorder (RAID)

Model: NVR508-64-E-IQ   •   MSKU: R4375

  • Supports Ultra265 / H.265 / H.264 video compression for efficient storage
  • 64-channel IP camera input with up to 32MP recording resolution
  • ONVIF-compliant (Profiles S, G, T) and RTSP camera support
  • Dual HDMI + dual VGA outputs with independent display control
  • 8 hard-drive bays with RAID support and N+1 hot-spare capability
  • ANR technology maintains recording during network interruptions
  • Cloud upgrade support for remote system maintenance

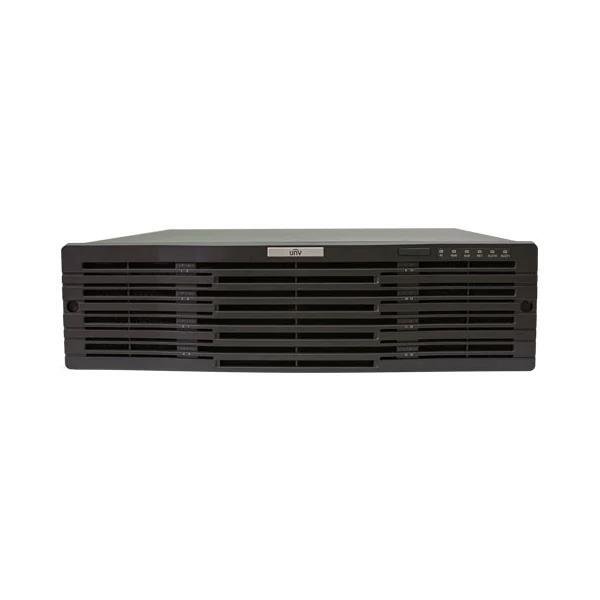

UNV 128 Channel NDAA Compliant 12MP NVR (16 SATA Bays)

Model: NVR516-128   •   MSKU: R4376

  • 128-channel IP camera input with Ultra265 / H.265 / H.264 support
  • Records up to 12MP resolution for high-detail systems
  • Dual HDMI + VGA outputs; HDMI up to 4K (3840×2160) with independent outputs
  • 16 SATA bays (up to 16TB each) with RAID 0/1/5/6/10 and hot-swap support
  • ONVIF support for third-party cameras (multiple ONVIF profiles supported)
  • Reliability features: ANR, N+1 hot spare, optional redundant power supply, cloud upgrade support

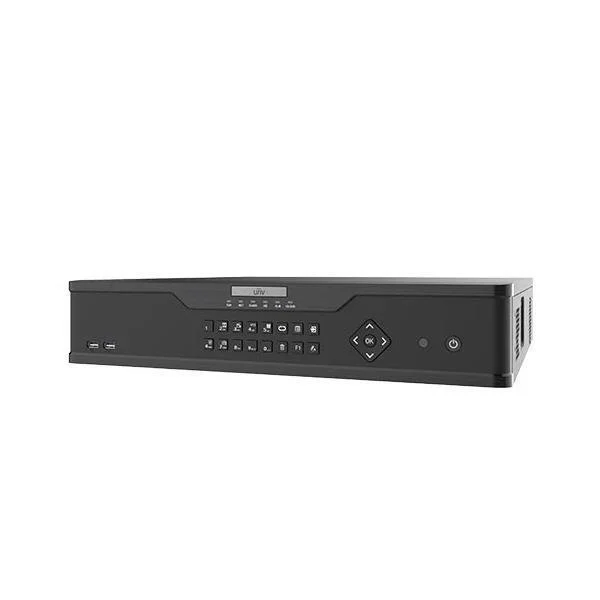

Prime I NDAA 16-Channel NVR (RAID, 4-SATA)

Model: NVR304-16X   •   MSKU: R4377

  • 16-channel network video recorder; NDAA compliant Prime I series
  • Supports up to 12MP recording with Ultra 265 / H.265 / H.264 compression
  • 4 SATA bays (up to 16TB each) with RAID 0/1/5/6/10 support
  • Dual HDMI (up to 4K) + VGA outputs for flexible local display
  • Fisheye dewarping + ANR (Automatic Network Replenishment) support
  • ONVIF compatible; optional cloud upgrade supported

UNV 12MP 32-Channel NDAA NVR (8-Bay + RAID Data Protection)

Model: NVR308-32X   •   MSKU: 4378

  • 32-channel IP input with recording up to 12MP resolution
  • Ultra H.265 / H.265 / H.264 video formats supported
  • 8 SATA bays (up to 10TB per drive) + RAID 0/1/5/6/10 support
  • ONVIF support for third-party cameras (Profile S / G / T)
  • Dual HDMI + VGA outputs (HDMI up to 4K 3840×2160) with independent outputs
  • N+1 hot spare, ANR storage reliability support, cloud upgrade support

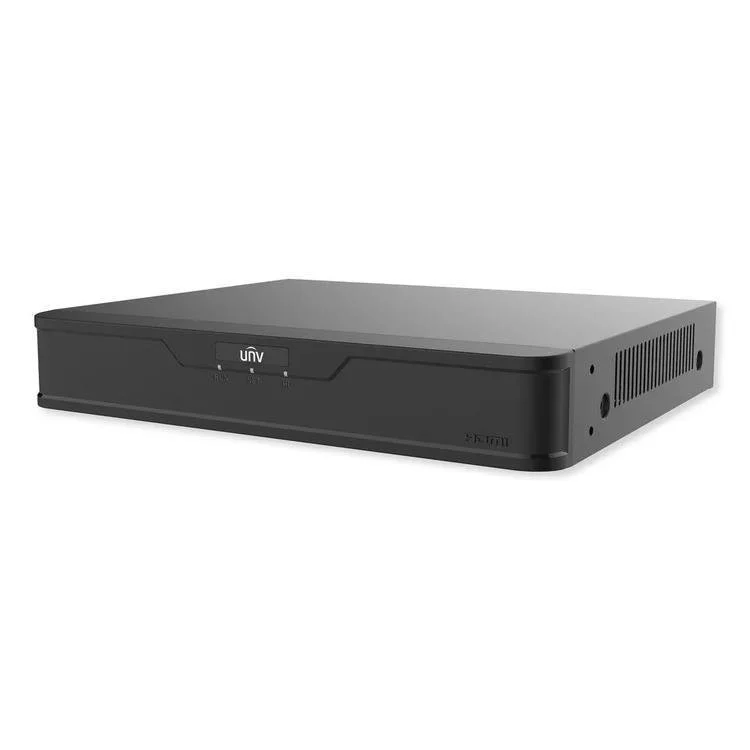

UNV 12MP 4-Channel NVR (AI Facial Recognition, 4 PoE, 1 HDD)

Model: NVR301-04B-P4-IQ   •   MSKU: R4379

  • Supports Ultra 265 / H.265 / H.264 video formats
  • 4-channel input with Plug & Play via 4 independent PoE network interfaces
  • Supports ONVIF (Profile S / G / T) and RTSP protocol for broad camera compatibility
  • HDMI and VGA simultaneous output
  • Up to 12MP resolution recording
  • ANR technology helps protect recording reliability during network disconnects
  • Supports cloud upgrade

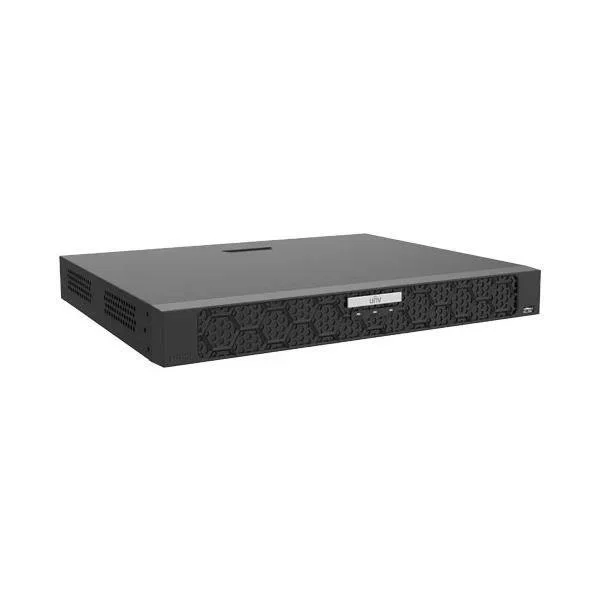

UNV 16-Channel 12MP NDAA Compliant PoE NVR

Model: NVR302-16B-P16-IQ   •   MSKU: 4380

  • 16-channel network video recorder supporting up to 12MP resolution
  • Plug & Play with 16 independent PoE network interfaces
  • Supports Ultra H.265 / H.265 / H.264 video compression formats
  • VGA and HDMI simultaneous video output
  • Dual SATA HDD bays supporting up to 10TB per drive
  • ANR technology enhances recording reliability during network outages
  • NDAA compliant for regulated commercial deployments

UNV 16-Channel 16MP UltraHD NDAA PoE NVR (2 SATA Bays)

Model: NVR502-16B-P16   •   MSKU: R4381

  • 16-channel network video recorder with Plug & Play using 16 independent PoE ports
  • Supports Ultra 265 / H.265 / H.264 video formats
  • Recording supports up to 16 Megapixels resolution
  • Video output: 1× HDMI + 1× VGA (HDMI up to 4K 3840×2160); independent HDMI/VGA output
  • Storage: 2× SATA bays, up to 10TB per drive
  • ONVIF compatible (Profile S/G/T) + RTSP support; ANR + cloud upgrade support

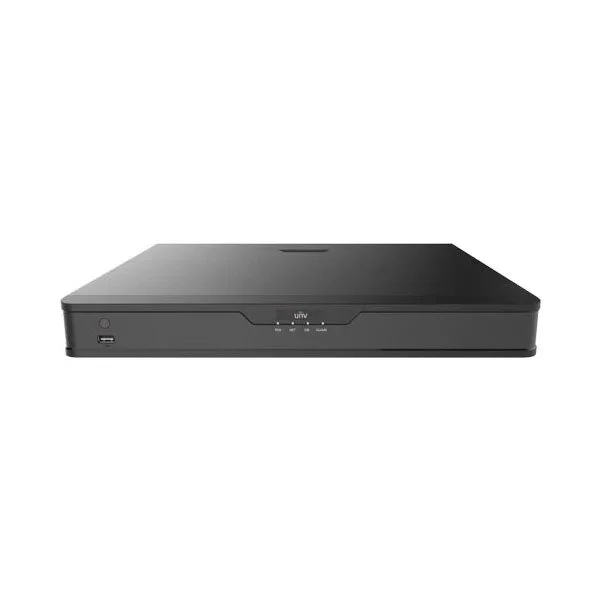

UNV 16-Channel NDAA Compliant 4K PoE NVR (2 SATA Bays)

Model: NVR302-16S2-P16   •   MSKU: 4382

  • 16-channel NVR with plug-and-play support via 16 independent PoE network interfaces
  • Supports Ultra265 / H.265 / H.264 video formats
  • Up to 8MP (4K) recording support
  • Third-party IP camera support via ONVIF conformance (Profile S / G / T)
  • HDMI + VGA simultaneous output
  • 2 SATA HDD bays — up to 10TB per drive; ANR storage reliability during network disconnects
  • NDAA compliant + supports cloud upgrade

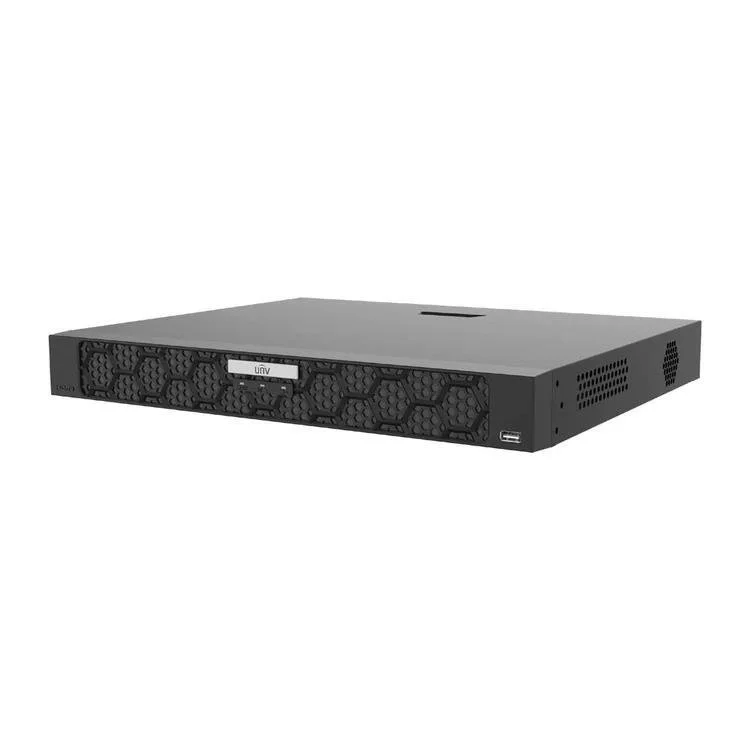

UNV 16MP UltraHD 16-Channel IQ NVR (2-Bay + Intelligent Analytics)

Model: NVR502-16B-P16-IQ   •   MSKU: R4383

  • 16-channel recorder for surveillance systems with up to 16 cameras
  • Up to 16MP recording per channel (great for 4K+ camera systems)
  • 2 hard drive bays with support up to 16TB total storage
  • IQ-series intelligent analyzer for upgraded AI capabilities
  • Facial recognition features (best with native Uniview cameras)
  • NVR-side Smart Intrusion Prevention events (line crossing, intrusion, area enter/exit), including support for many ONVIF third-party cameras

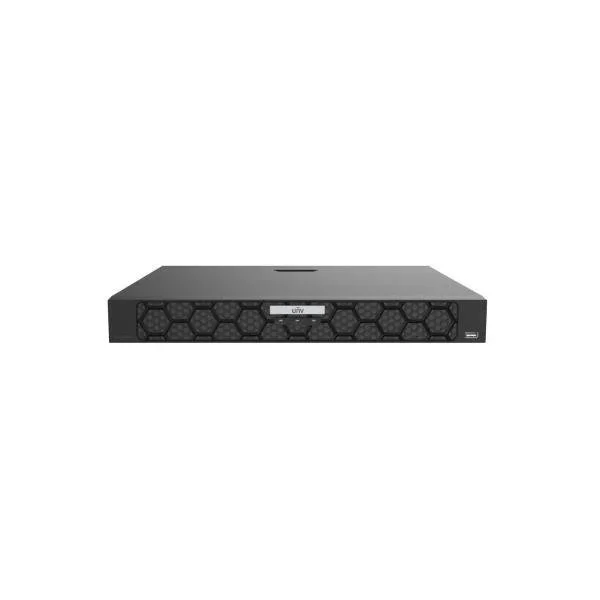

UNV 16MP UltraHD 32-Channel NVR (16 PoE, 4-Bay, IQ Analytics)

Model: NVR504-32B-P16-IQ   •   MSKU: R4384

  • Supports up to 32 cameras (16 plug-and-play via built-in PoE switch + 16 over the network)
  • Records up to 16MP per channel — ideal for 4K+ camera deployments
  • 4 hard drive bays for expanded on-site storage (up to 16TB total capacity noted)
  • IQ-series intelligent analyzer enables deep-learning analytics on the NVR (not just the cameras)
  • ONVIF-friendly: bring in 3rd-party cameras and still use Uniview AI algorithms
  • AI features include Facial Recognition (32 channels with native UNV cams; up to 4 channels with 3rd-party cams) and SIP events (up to 8 channels)

UNV IQ 8-Channel NVR — 16MP Recording + Intelligent Analytics (2-Bay)

Model: NVR502-08B-P8-IQ   •   MSKU: R4385

  • 8-channel recorder for systems up to 8 cameras, recording up to 16MP per channel (great for 4K+ cameras)
  • Two hard drive bays supporting up to 16TB total storage for on-site recording
  • Built-in IQ “intelligent analyzer” adds NVR-side AI so you can keep analytics even with 3rd-party ONVIF cameras
  • Facial recognition: store face snapshots and trigger alerts for recognized / unrecognized individuals (native UNV cams supported best)
  • Smart Intrusion Prevention (SIP): line crossing, intrusion, area entrance, and area exit running on the NVR side (up to 4 channels)

UNV 32 Channel 16MP Intelligent IQ NVR (4 SATA Bays)

Model: NVR504-32B-IQ   •   MSKU: R4386

  • 32-channel network video recorder with support up to 16MP resolution
  • Supports Ultra265 / H.265 / H.264 video compression formats
  • ONVIF Profile S, G, T and RTSP protocol compatibility
  • HDMI output up to 4K (3840×2160) plus independent VGA output
  • ANR technology ensures recording reliability during network outages
  • Four SATA HDD bays for expanded local storage and cloud upgrade support

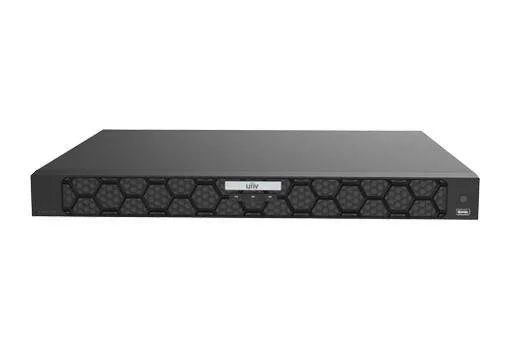

UNV 32-Channel 16MP UltraHD NDAA Compliant NVR (4 SATA Bays)

Model: NVR504-32B   •   MSKU: 4387

  • 32-channel NVR with up to 16MP recording resolution
  • Supports Ultra 265 / H.265 / H.264 video formats
  • ONVIF support (Profiles S / G / T) plus RTSP compatibility for mainstream cameras
  • VGA and HDMI independent output
  • ANR technology helps protect storage reliability during network disconnects
  • Supports cloud upgrade

UNV 32-Channel 16MP UltraHD NDAA PoE NVR (16-Port)

Model: NVR504-32B-P16   •   MSKU: 4388

  • 32-channel network video recorder with up to 16MP recording resolution
  • Supports Ultra 265 / H.265 / H.264 compression formats
  • 16 independent PoE network interfaces for plug-and-play camera installs
  • ONVIF Profile S, G, T and RTSP protocol compatibility
  • 1× HDMI (up to 4K 3840×2160) + 1× VGA with independent output
  • Supports 4 SATA HDD bays for expanded local storage
  • ANR technology improves recording reliability during network outages
  • NDAA compliant for regulated commercial environments

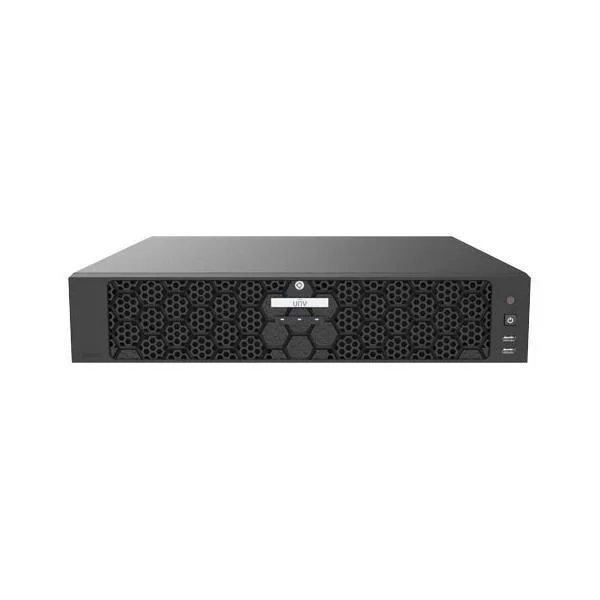

UNV 32MP UltraHD 64-Channel Network Video Recorder (RAID)

Model: NVR508-64E-R   •   MSKU: R4389

  • Supports Ultra265 / H.265 / H.264 video compression formats
  • 64-channel IP camera input with up to 32MP recording resolution
  • ONVIF compliant (Profiles S, G, T) and RTSP support
  • Dual HDMI and dual VGA outputs with independent display control
  • 8 SATA bays supporting up to 16TB per drive
  • RAID 0/1/5/6/10 support with hot-swap and optional redundant power

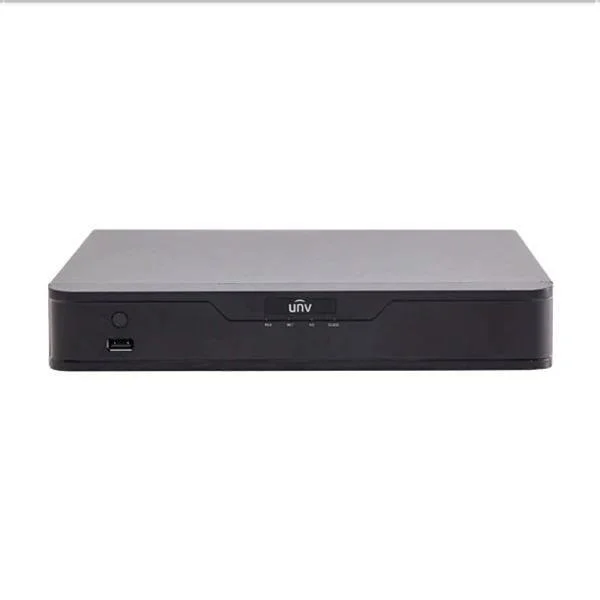

UNV 4K 16-Channel Hybrid XVR (NDAA Compliant)

Model: XVR302-16Q3   •   MSKU: R4390

  • Hybrid XVR supporting 16 BNC channels plus up to 8 IP cameras
  • Supports TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
  • H.265 / H.264 video compression for efficient storage
  • HDMI output up to 4K (3840 × 2160) with simultaneous HDMI + VGA output
  • Audio over coax supported (TVI cameras only)
  • Dual SATA HDD bays for expanded local storage
  • ONVIF and RTSP compatible; NDAA compliant for regulated environments

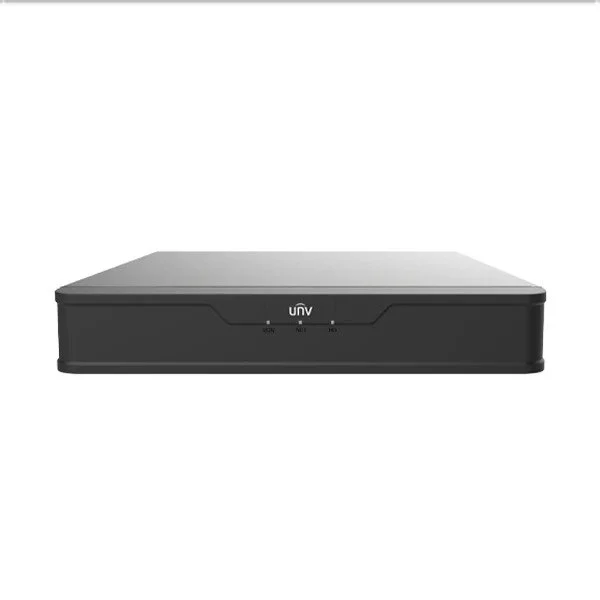

UNV 4K Ultra HD PoE 4-Channel NDAA Network Video Recorder

Model: NVR501-04B-P4   •   MSKU: R4391

  • 4-channel PoE NVR supporting up to 8MP (4K Ultra HD) recording
  • ONVIF Profile S, G, and T support plus RTSP compatibility
  • HDMI output up to 4K (3840×2160) and VGA output support
  • Ultra265 / H.265 / H.264 compression for efficient storage
  • Single SATA bay supporting up to 8TB hard drive capacity
  • ANR technology ensures recording continuity during network interruptions
  • NDAA-compliant for regulated commercial environments

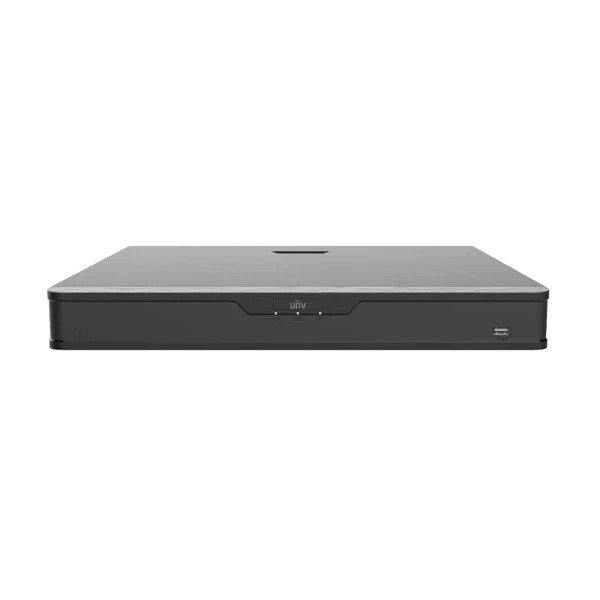

UNV 4K UltraHD 32-Channel Hybrid XVR (Tribrid + IP)

Model: XVR302-32Q3   •   MSKU: R4392

  • 32-channel hybrid recorder (TVI / AHD / CVI / CVBS) with additional IP support
  • Up to 4K Ultra HD recording capability (camera/channel dependent)
  • H.265 compression support for efficient storage usage
  • Dual SATA bays with up to 8TB total storage capacity (2×4TB)
  • Designed for commercial retrofits and mixed-camera environments

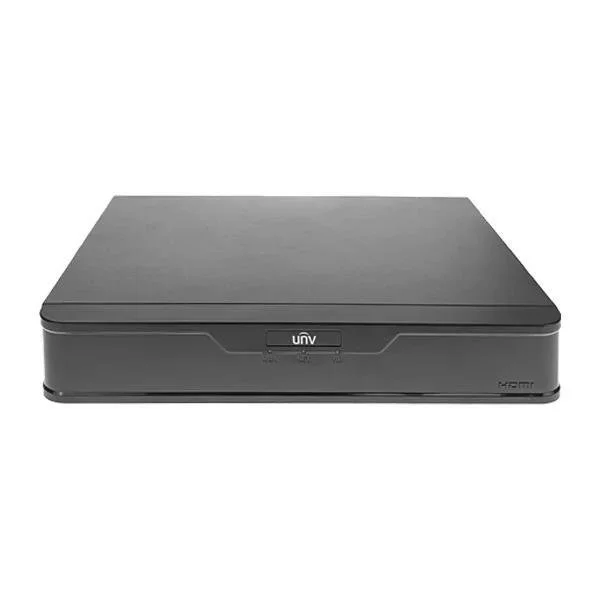

UNV 4K UltraHD Hybrid 8-Channel DVR (8 BNC + 4 IP, 1 SATA Bay)

Model: XVR301-08Q3   •   MSKU: R4393

  • Hybrid recorder supports TVI / AHD / CVI / CVBS / IP cameras (adaptive access)
  • Supports H.265 / H.264 video formats
  • 8-channel BNC input + 4 additional IP inputs
  • Outputs: 1×CVBS, 1×VGA, 1×HDMI up to 4K (3840×2160); HDMI + VGA simultaneous output
  • Supports audio over coaxial cable (TVI cameras only) + long coax transmission distance
  • Supports mainstream cameras via ONVIF and RTSP protocols; 1 SATA hard drive bay

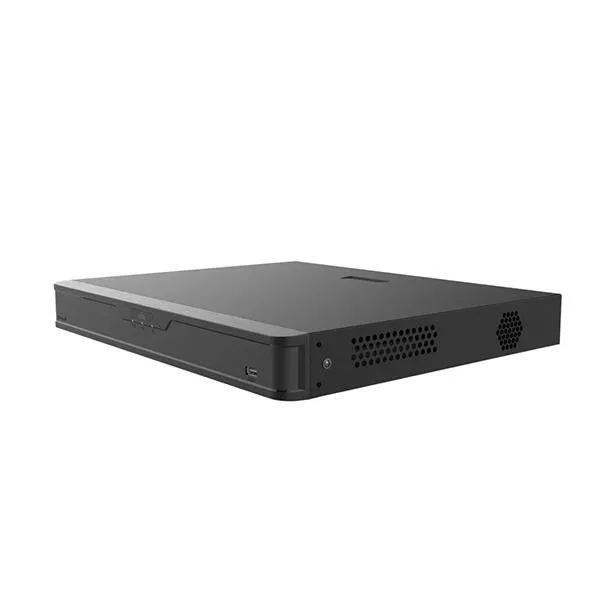

UNV 4K UltraHD NDAA-Compliant 16-Channel Hybrid DVR

Model: XVR302-16U3   •   MSKU: R4394

  • 16-channel hybrid DVR supporting TVI, AHD, CVI, CVBS, and IP cameras
  • Supports H.265 / H.264 video compression formats
  • 16 BNC inputs plus support for 16 additional IP channels
  • HDMI and VGA simultaneous output up to 4K (3840×2160)
  • Audio over coax supported for TVI cameras
  • ONVIF and RTSP protocol support for broad camera compatibility
  • NDAA-compliant solution for regulated commercial installations

UNV 4K UltraHD NDAA 8-Channel Hybrid DVR (8 BNC + 8 IP) — XVR302-08U3

Model: XVR302-08U3   •   MSKU: R4395

  • 8-channel hybrid DVR supports TVI, AHD, CVI, CVBS + 8 additional IP inputs
  • H.265 / H.264 video format support for efficient recording
  • Audio over coax support (TVI cameras only)
  • 8-channel BNC input for coax cameras
  • HDMI output up to 4K (3840×2160) + VGA + CVBS outputs (HDMI/VGA simultaneous)
  • ONVIF + RTSP protocol support for broad IP camera compatibility

UNV 8-Channel 12MP NDAA Compliant PoE NVR (2 SATA Bays)

Model: NVR302-08B-P8-IQ   •   MSKU: 4396

  • 8-channel input with up to 12MP resolution recording
  • Plug & Play with 8 independent PoE network interfaces
  • Supports Ultra265 / H.265 / H.264 video formats
  • VGA and HDMI simultaneous output
  • 2 SATA HDD bays: up to 10TB per drive
  • ANR technology improves storage reliability during network interruptions
  • Supports cloud upgrade; NDAA compliant

UNV 8-Channel 16MP UltraHD NDAA Compliant PoE NVR

Model: NVR502-08B-P8   •   MSKU: R4397

  • 8-channel NDAA-compliant PoE network video recorder
  • Supports Ultra265 / H.265 / H.264 video compression
  • Plug-and-Play with 8 independent PoE network interfaces
  • Up to 16MP recording resolution with 4K HDMI output
  • ONVIF (Profiles S, G, T) and RTSP camera compatibility
  • Dual SATA bays supporting up to 10TB per drive
  • ANR technology ensures recording during network outages
